12 Inch Warm White Modular LED Under Cabinet Lighting - Standard Kit (4 Panels)

Model : E7574

Original Price: $103.44

$59.99



Dimmer Type (Optional)

Power Supply Upgrade (Optional)






Availability: In Stock

Quick Overview

  • Total Lumen: 1120 Lumen
  • Color Temperature: 3000 Kelvin
  • Total Wattage Consumption: 12 Watt
  • Voltage: 24 Volt
  • Dimmable / UL Listed
  • Only 0.35 inch / 9 mm thick (60 percent thinner than standard under cabinet lighting*).
  • Sturdy aluminum body. One of the best in the market for its exceptional durability.
  • Simple plug-in installation. For most of cases, only tool you will need is screw driver for mounting bracket.
  • Bright 1120 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
  • Each individual has bright 42 LED (Epistar 3528).
  • Only consumes 12 watt maximum. Saves at least 80 percent on energy.
  • 24 voltage offers highly energy efficient, minimum heat contribution, longer life span, and safer.

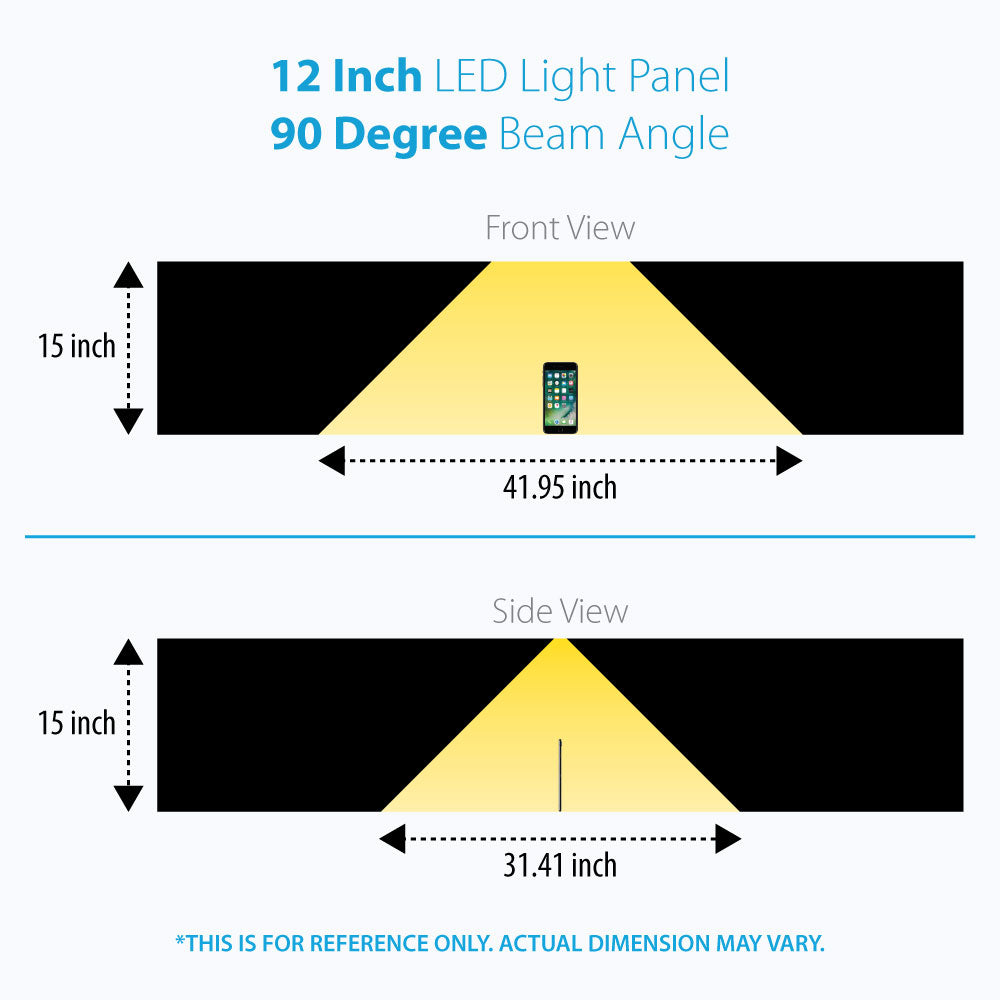

  • The light distributes in 90 degree beam angle to optimize & maximize lighting under cabinet cabinet.
  • Easily control the brightness to a desired level using inline dimmer switch.
  • To ensure maximize the safety, Modular LED Light Panel & Power Supply have been certified by UL.

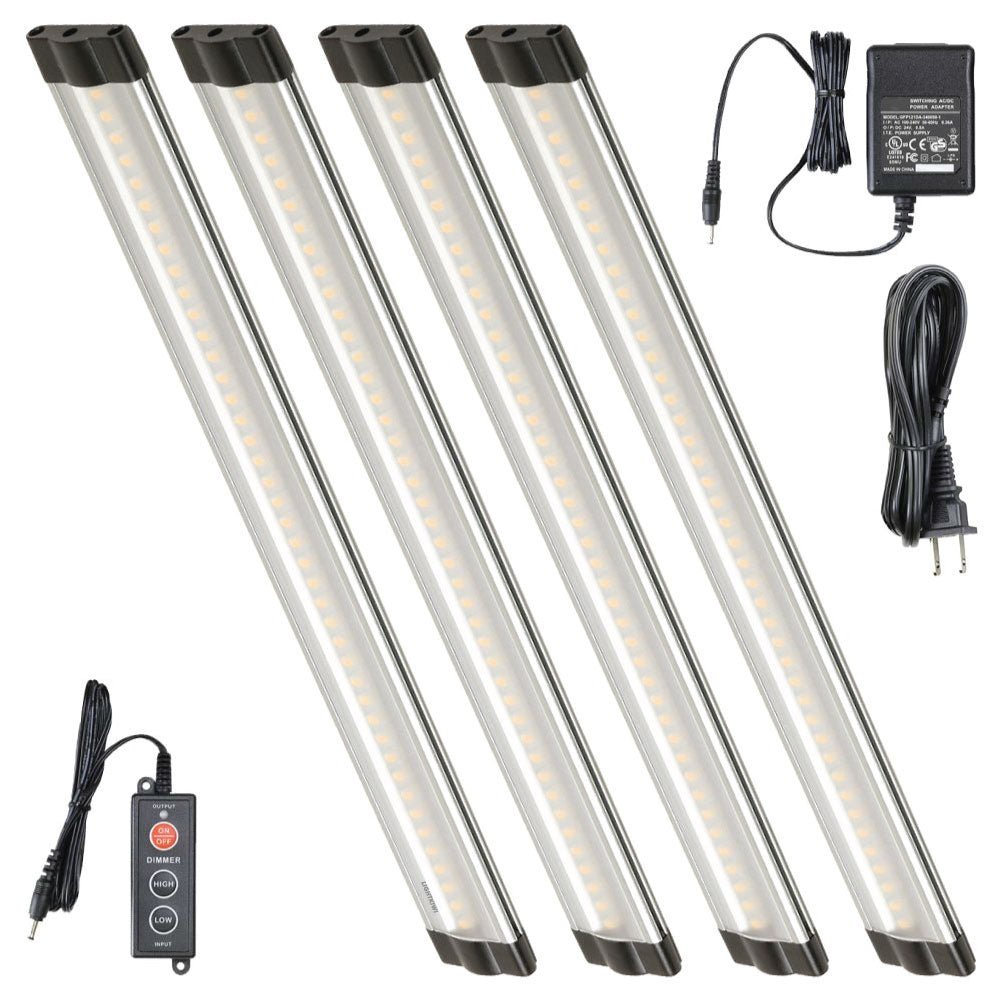

What's Included

  • 4 x Lightkiwi 12 Inch Warm White Modular LED Under Cabinet Light Panel
  • 1 x 12 Watt Power Supply - Link up to (4) 12 inch panels
  • 1 x Dimmer Switch
  • 1 x 4-way Splitter
  • 4 x 3ft Interconnect Cable
  • 4 x Modular Connector

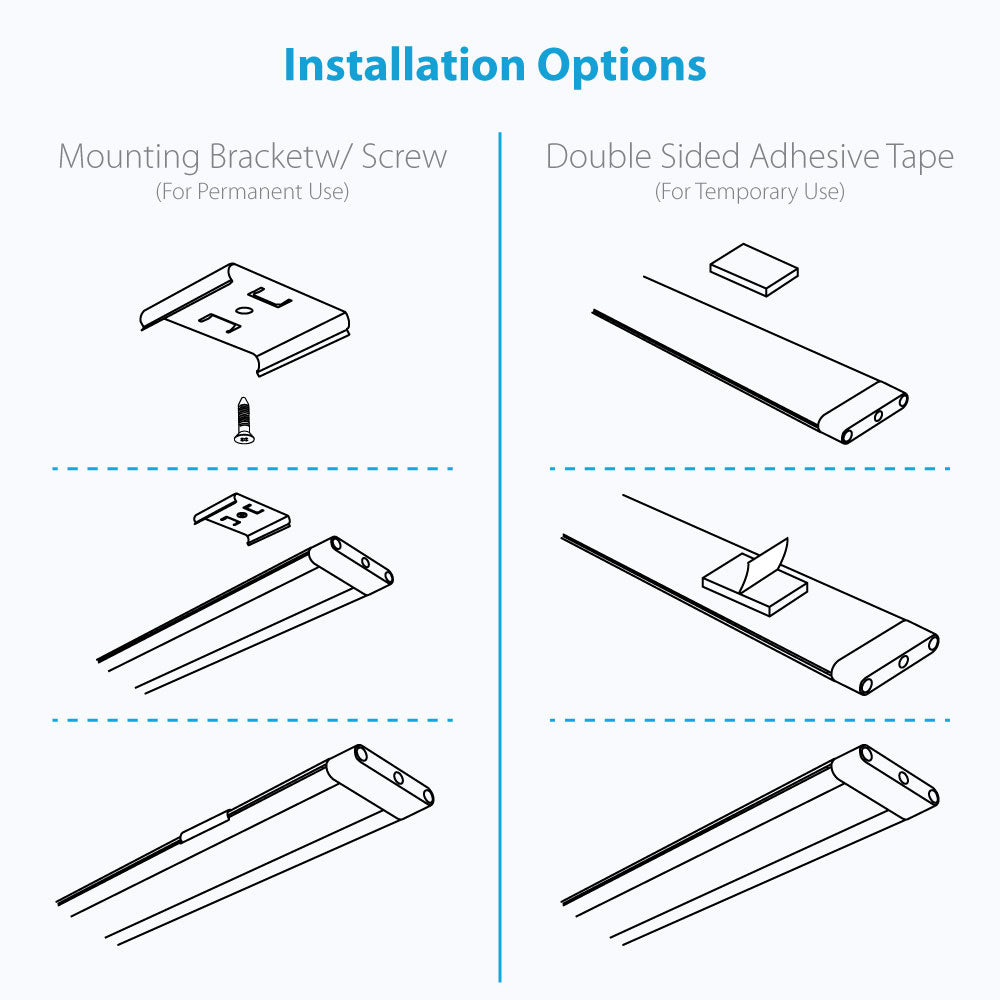

  • 8 x Mounting Bracket w/ Screw


[Dimension]

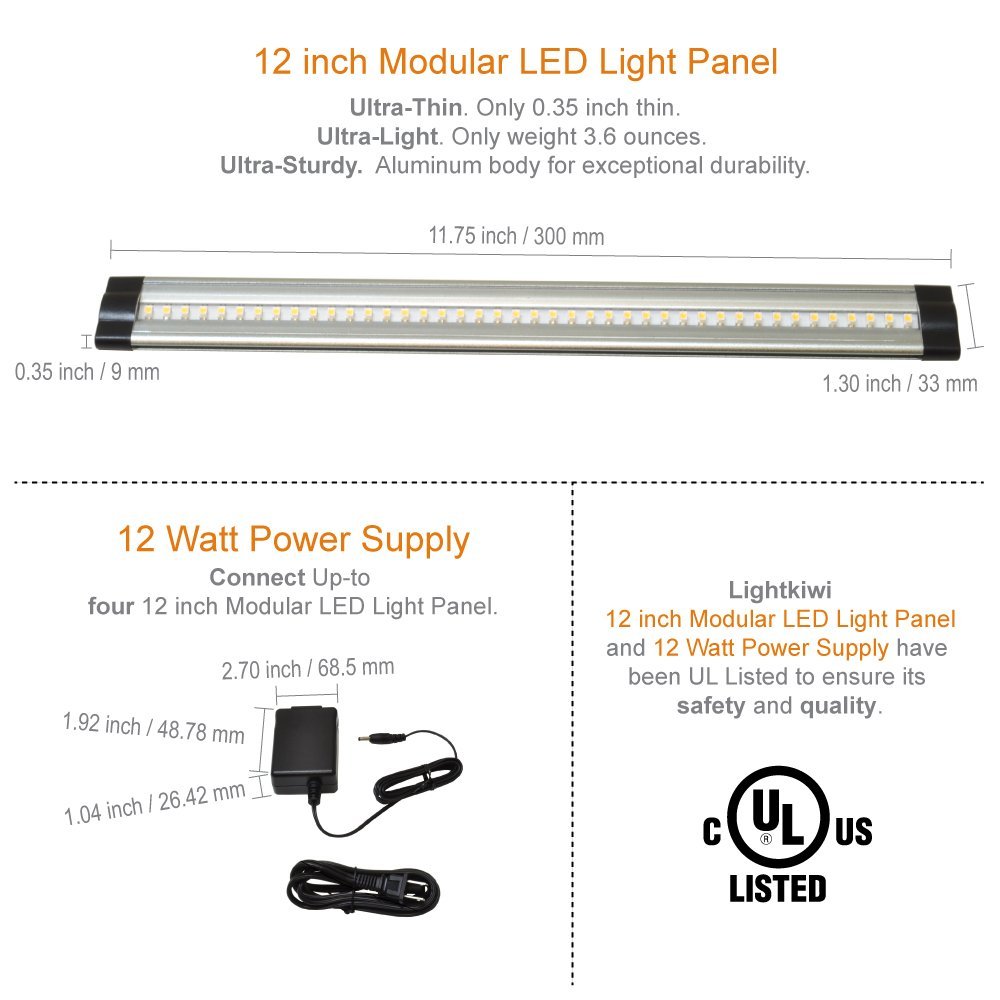

12 Inch LED Light Panel
11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)

12 Watt Power Supply
2.70 x 1.92 x 1.04 Inch (68.5 x 48.78 x 26.42 mm)

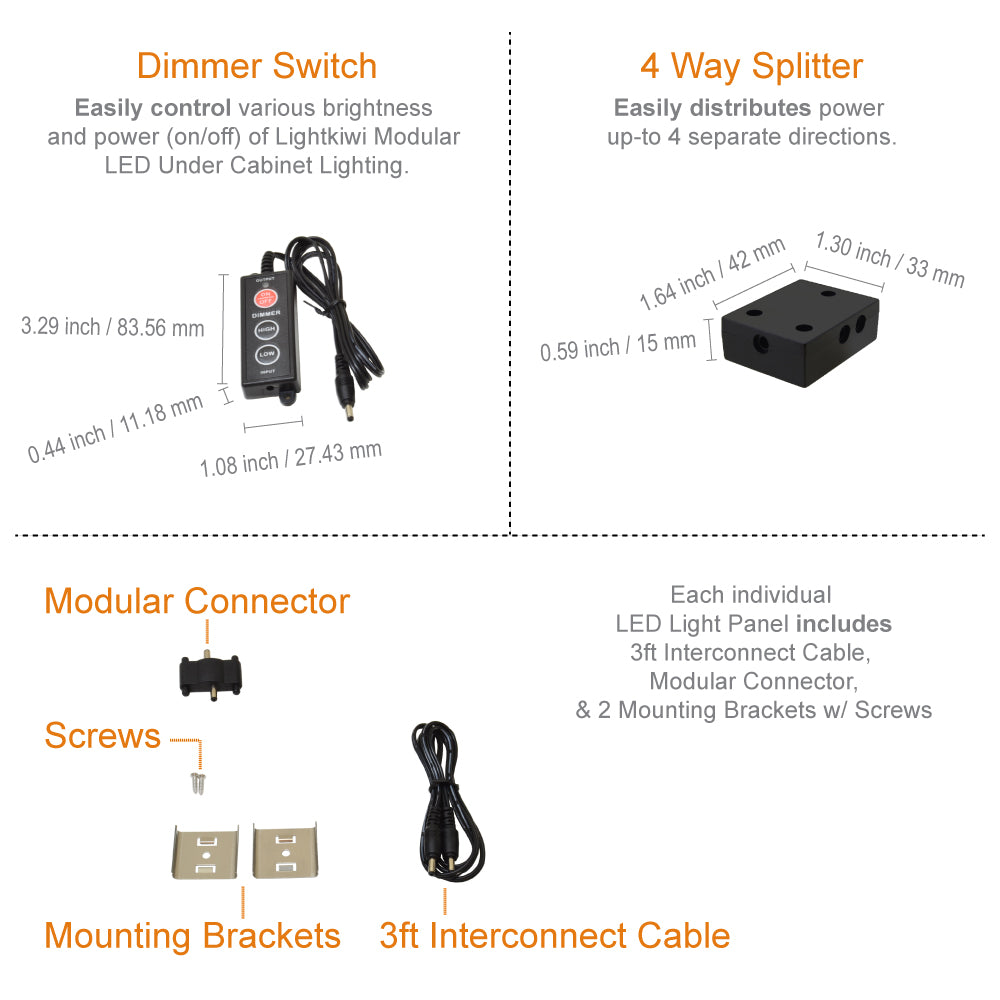

Dimmer Switch
3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)

4-Way Splitter
1.64 x 1.30 x 0.59 Inch. (42 x 33 x 15 mm)

Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)

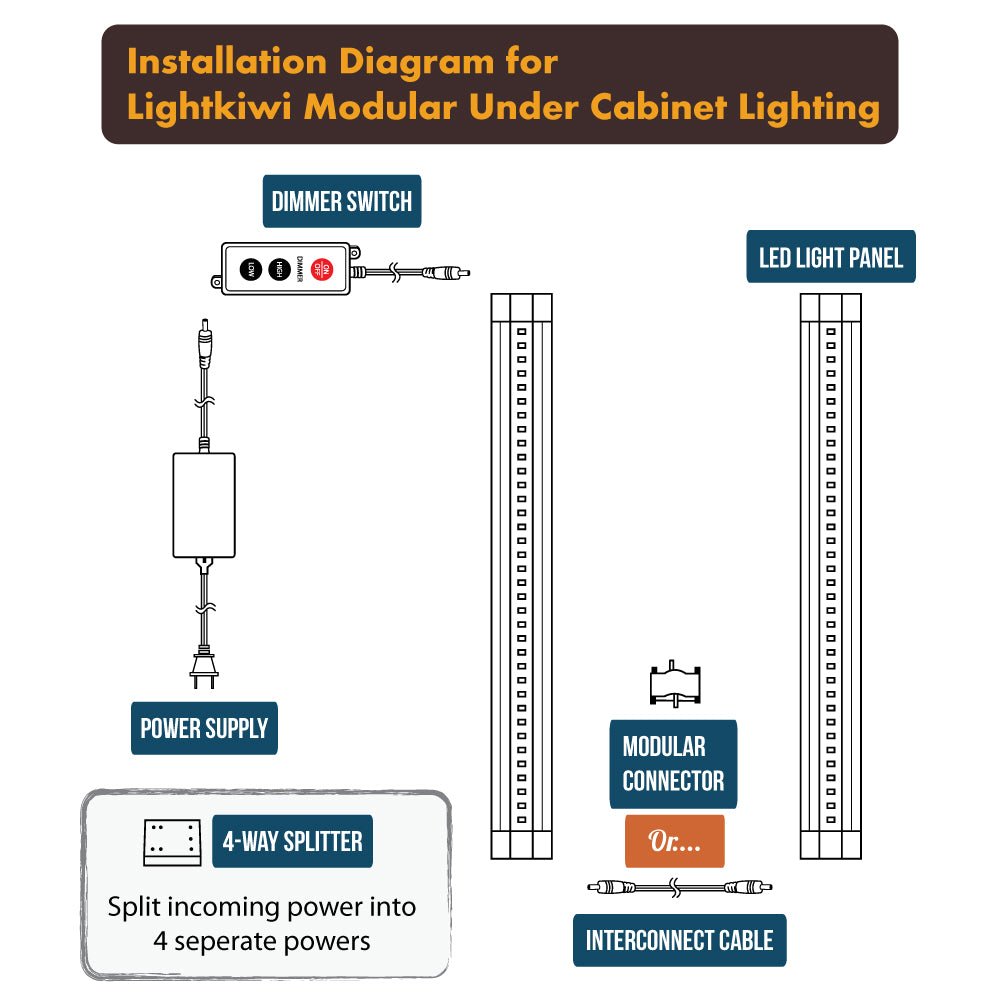

Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with dimmable transformer, instead of the included power supply which plugs into wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). Inline dimmer switch (24V) is incompatible with dimmable transformer.

If not used with wall dimmer switch, plug-in power supply (except 6 watt power supply) can be used to do the hardwire installation, but if dimmer switch is needed, 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect to the power source with a junction box or something similar. Wall dimmer switch (110V) is incompatible with plug-in power supply.

Power Supply Start Up time
Depends wattage of power supply, the start up time may differ. Please use matched wattage of power supplies for best result.

Electrical
Wattage 12 Watt
Voltage 24 Volt
Power Supply 12 Watt
Photometrics
Lumens 1120
Life Hours 40,000
Color Warm White
Bulb Shape LED Panel
Dimmable Dimmable
Color Temperature 3000 Kelvin
Beam Angle 90 Degree
LED Chipset Array 42 LED
Dimming Control Electronic Dimmer
Dimensions
Length 11.75 inch.
Diameter 1.32 inch.
Thickness 0.38 inch.
Certifications
Certification UL Listed / CE / RoHS
Materials
Lighting Type 12" Panel
Installation
Expandable Yes
Other Specifications
Wattage Equivalent 120 Watt
Number of Lighting 4
Series XT

Lighting Facts

Brightness

1120 Lumens

Estimated Yearly Energy cost

$1.45

Based on 3 hrs/day, 11¢/kWh
Cost depends pm rates and use.

Life

Based on 3 hrs/day

36.5 years

Lighting Appearance

Energy Used

12 Watts

Product Comparison

Product Image
Model E7574 Y2657 V6699 B1353
Expandable Yes Yes Yes No
Power Supply 12 Watt 24 Watt 40 Watt 12 Watt
Series XT Lilium Dunn Economy
Wattage 12 Watt 20 Watt 30 Watt 12 Watt
Dimmable Dimmable Dimmable Dimmable Dimmable
Color Temperature 3000 Kelvin 3000 Kelvin 3000 Kelvin 3000 Kelvin
Beam Angle 90 Degree 120 Degree 180 Degree 90 Degree
Dimming Control Electronic Dimmer Electronic Dimmer Wall Dimmer Hand Wave
Voltage 24 Volt 24 Volt 120 Volt 12 Volt
Number of Lighting 4 4 6 3
Certification UL Listed / CE / RoHS UL Listed / CE / RoHS UL Listed / CE / RoHS N/A
Price $59.99 $84.99 $217.29 $38.99
