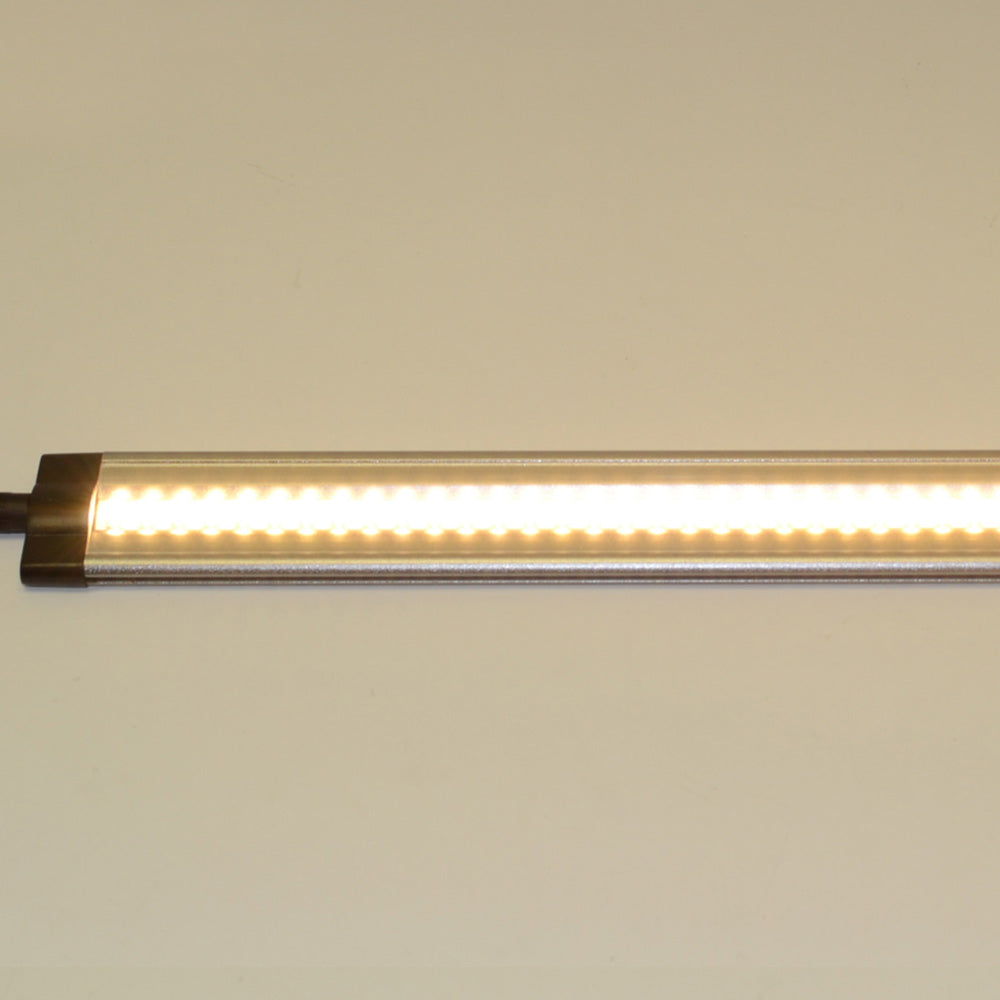

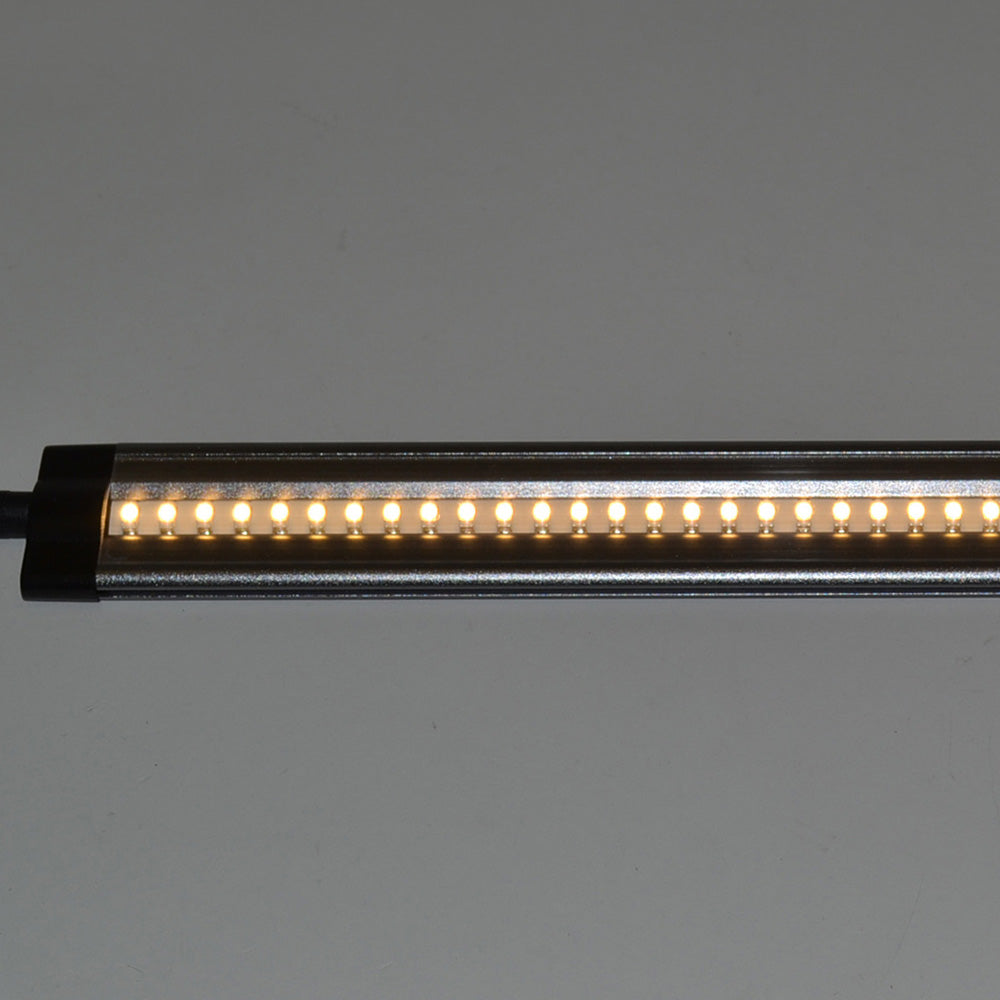

12 Inch Warm White Modular LED Under Cabinet Lighting Panel

POWER SUPPLY NOT INCLUDED

• Only 0.35 inch / 9 mm thick (60 percent thinner than the standard under cabinet lighting*).
• Sturdy Aluminum Body. One of the best in the market for its exceptional durability.
• Simple Plug-in Installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
• Bright 280 Lumen (about 20 percent brighter than most under cabinet lighting available in the market).
• Each individual unit has a Bright 42 LED (Epistar 3528).
• Only Consumes 3 Watt Maximum. Saves at least 80 percent on energy.
• 24 Voltage (24VDC) offers highly energy-efficient, minimum heat contribution, longer life span, and safer.
• The light distributes in 90 Degree Beam Angle to optimize and maximize lighting under the cabinet.
• Easily Control the Brightness to the desired level using the inline dimmer switch.
• To ensure & maximize the safety, Modular LED Light Panel has been Certified by UL.

Important: Please ensure the wattage of the combined units does not exceed the maximum wattage of the power supply used.

Modular LED
Under Cabinet Lighting
Power Requirement Chart

• What's Included
  • Lightkiwi 12 inch Warm White Modular Under Cabinet LED Light Panel
  • 3ft Interconnect Cable
  • Modular Connector
  • (2) Mounting Bracket w/ Screw

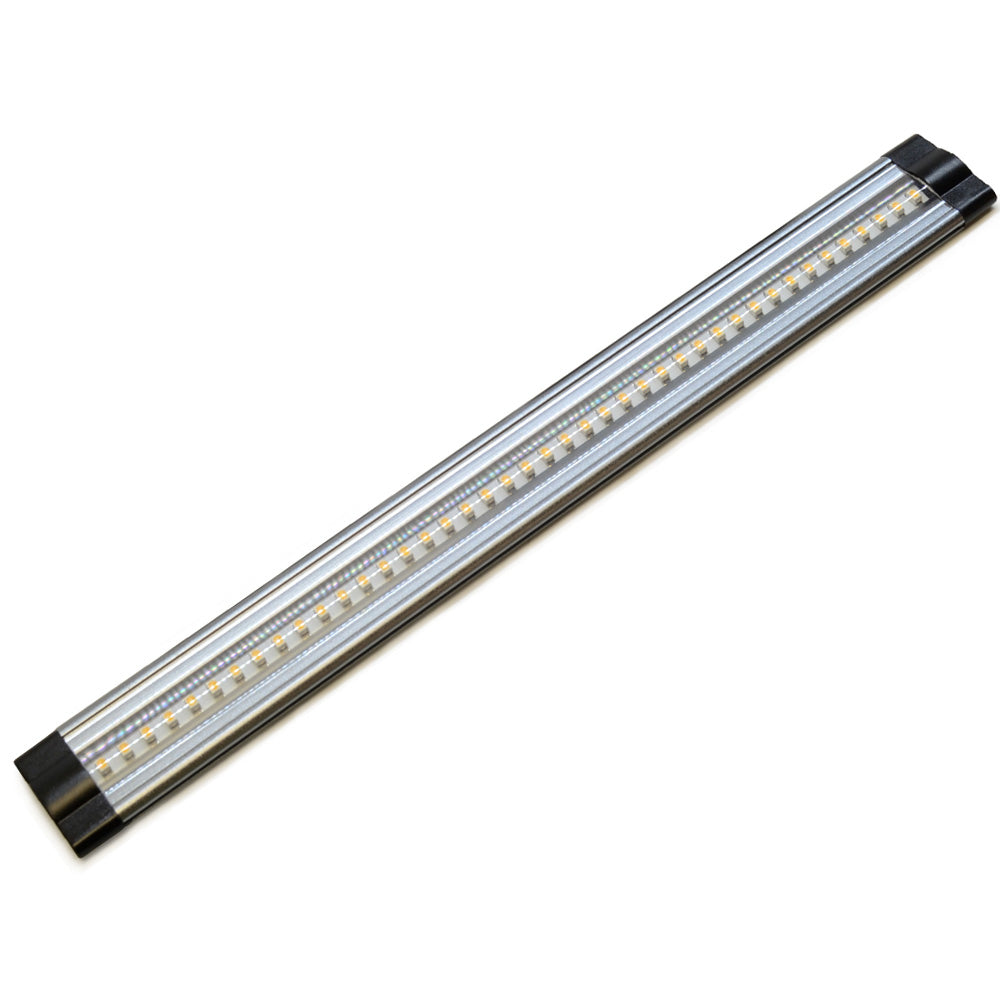

12 Inch LED Light Panel

11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)

Modular Connector

0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)
