6 Inch Warm White Modular LED Under Cabinet Lighting - Basic Kit (1 Panel)
- Only 0.35 inch / 9 mm thick (60 percent thinner than the standard under cabinet lighting*).
- Sturdy aluminum body. One of the best in the market for its exceptional durability.

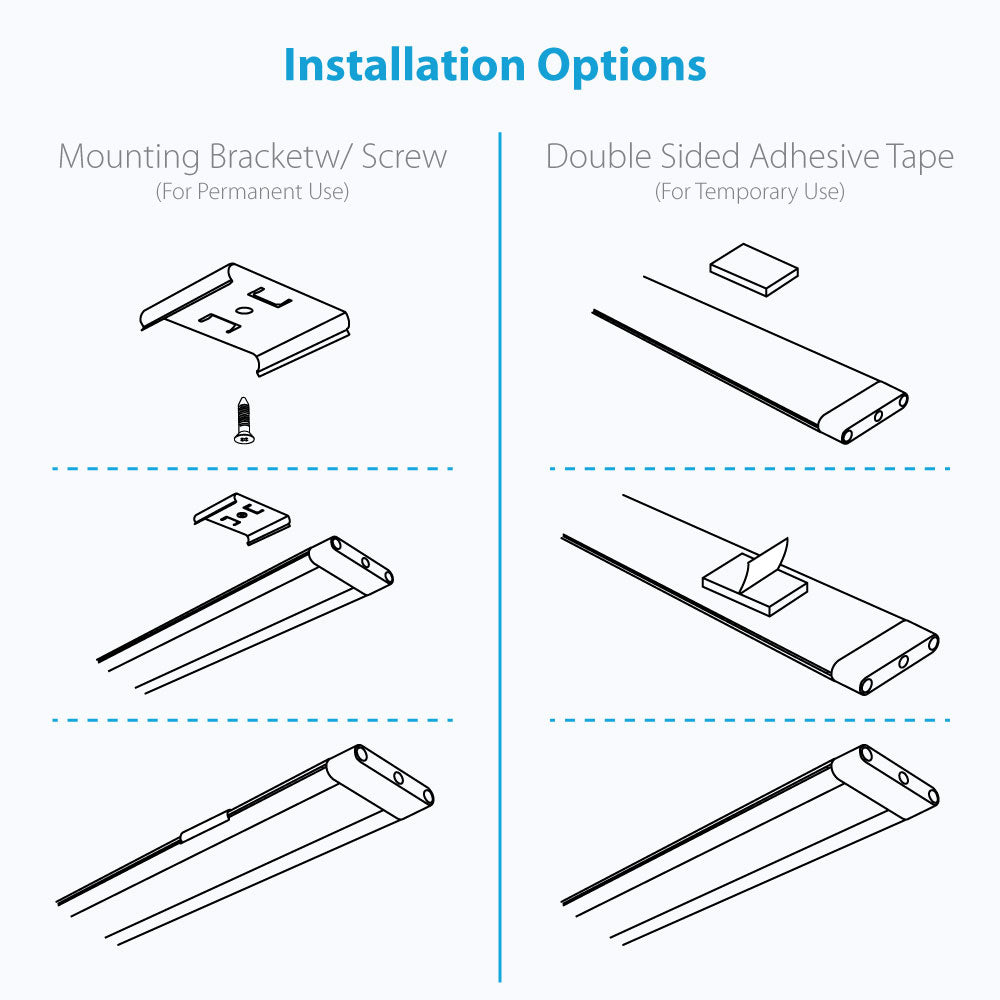

- Simple plug-in installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
- Bright 150 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
- Each individual has a bright 24 LED (Epistar 3528).
- It only consumes 1.8-watt maximum. Saves at least 80 percent on energy.
- 24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

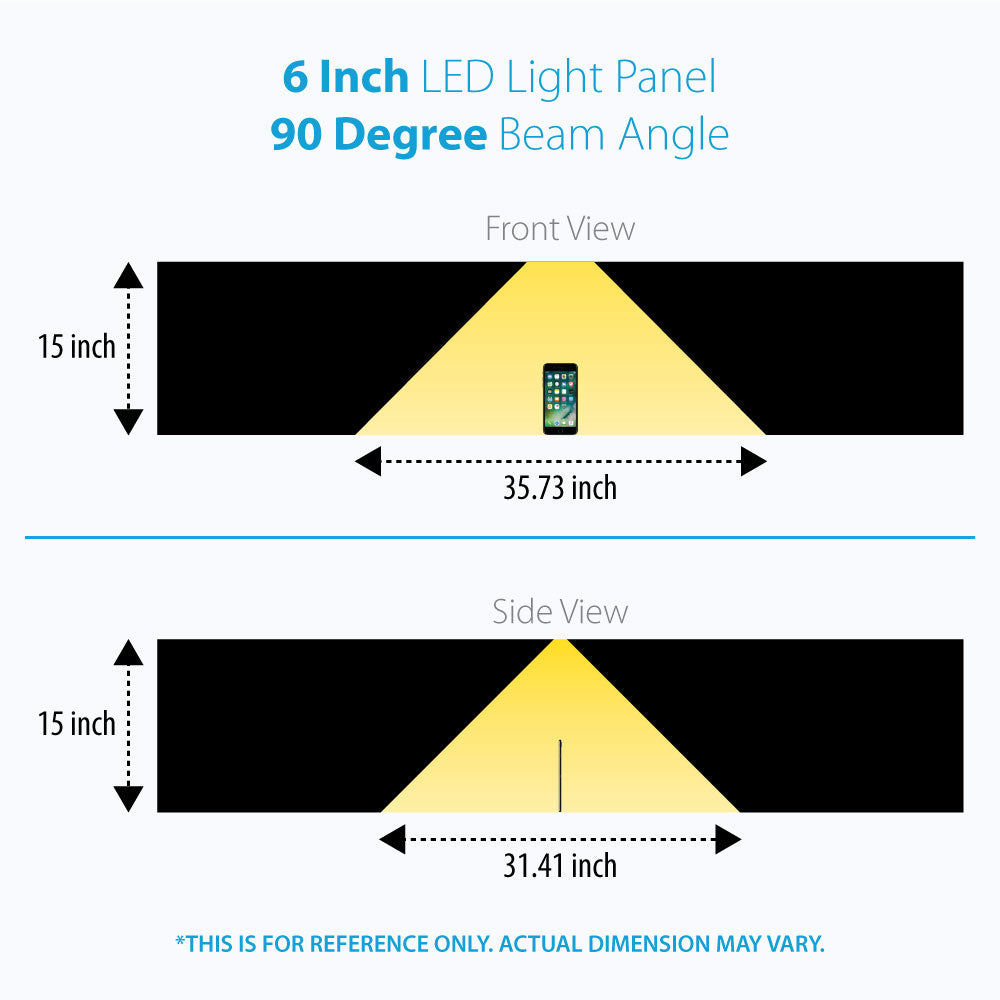

- The light distributes in a 90-degree beam angle to optimize & maximize lighting under the cabinet.
- Easily control the brightness to the desired level using the inline dimmer switch.
- To ensure maximize the safety, Modular LED Light Panel & Power Supply have been certified by UL.

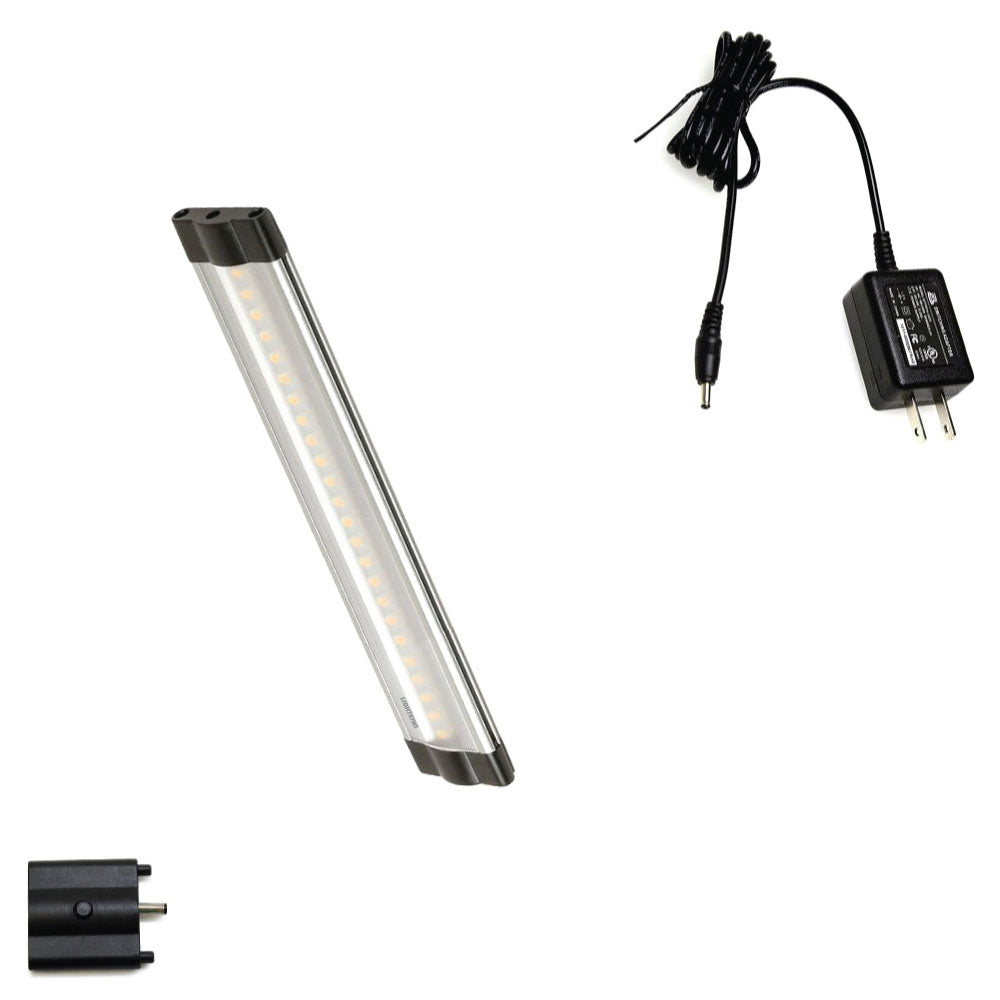

What's Included
- 1 x Lightkiwi 6 Inch Warm White Modular LED Under Cabinet Light Panel
- 1 x 6 Watt Power Supply - Link up to (3) 6-inch panels
- 1 x Master On/Off Switch
- 1 x 3ft Interconnect Cable
- 1 x Modular Connector
- 2 x Mounting Brackets

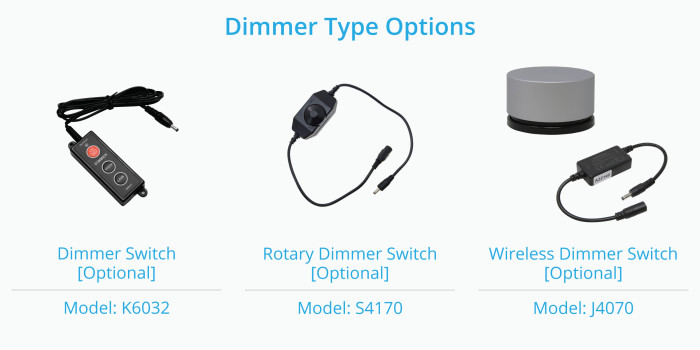

If you want a dimmer switch instead of an on/off switch, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.
- Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
- Rotary Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
- Wireless Dimmer Switch (Dial Remote Control + Receiver) for Modular LED Under Cabinet Lighting
[Dimension]
6 Inch LED Light Panel
5.90 x 1.30 x 0.35 Inch. (150 x 33 x 9 mm)
6 Watt Power Supply
1.89 x 1.38 x 0.98 Inch (48 x 35 x 25 mm)
Master On/Off Switch
1.29 x 1.34 x 0.43 Inch (33 x 34 x 11 mm)
Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)
Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.
If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.
Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ. Please use matched wattage of power supplies for the best result.
Electrical | |
Wattage | 1.8 Watt |
Voltage | 24 Volt |
Photometrics | |
Lumens | 150 |
Life Hours | 40,000 |
Color | Warm White |
Bulb Shape | LED Panel |
Color Temperature | 3000 Kelvin |
Beam Angle | 90 Degree |
LED Chipset Array | 24 LED |
Dimensions | |
Length | 5.92 inch. |
Diameter | 1.32 inch. |
Thickness | 0.38 inch |
Certifications | |
Certification | UL Listed / CE / RoHS |
Materials | |
Lighting Type | 6" Panel |
Other Specifications | |
Wattage Equivalent | 20 Watt |
Number of Lighting | 1 |
