3.5 inch Cool White LED Puck Lights - Standard Kit (4 Pack)
- Only 0.28 inch / 7 mm thick (60 percent thinner than the standard under cabinet lighting*).
- Sturdy aluminum body. One of the best in the market for its exceptional durability.
- Simple plug-in installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
- Bright 1120 lumen (about 20 percent brighter than most under cabinet lighting available in the market).

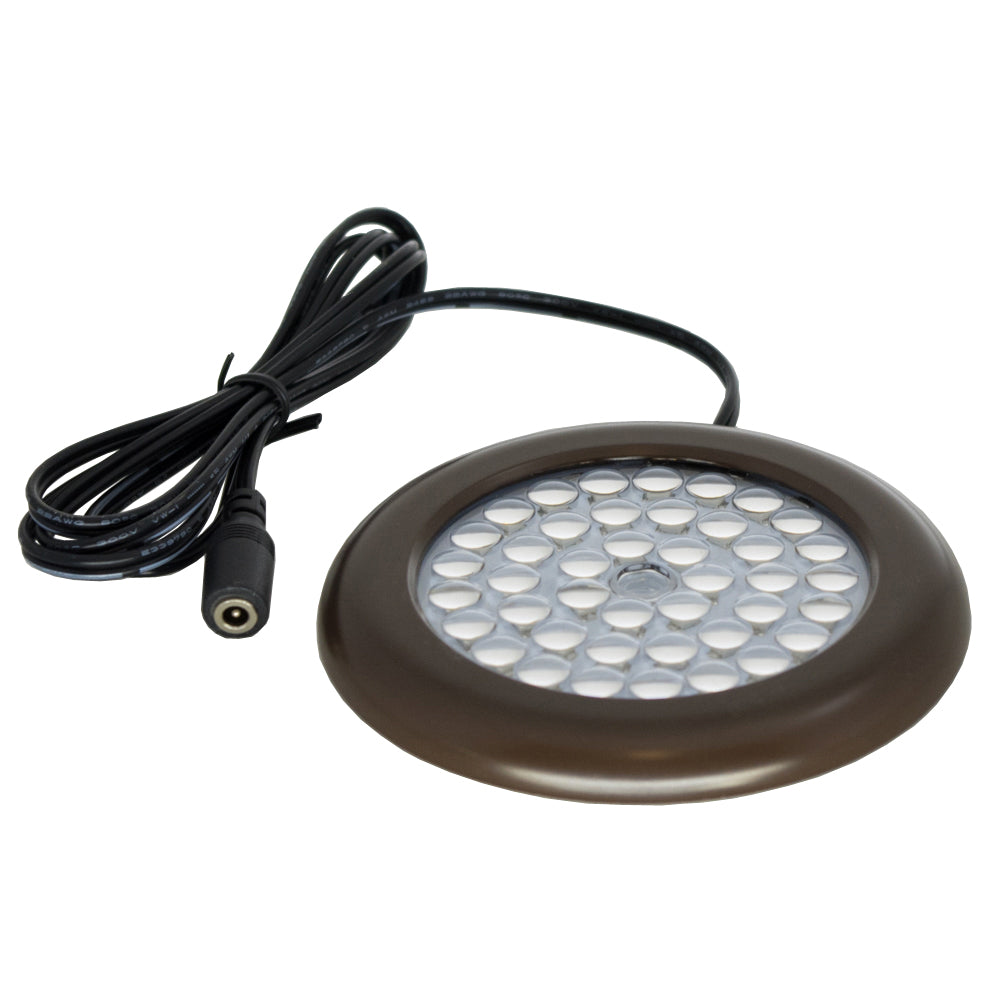

- Each individual 3.5-inch LED Puck Light has a bright 42 LED (Epistar 3528).
- It only consumes 12-watt maximum. Saves at least 80 percent on energy.
- 24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.
- Easily control the brightness to the desired level using the inline dimmer switch.

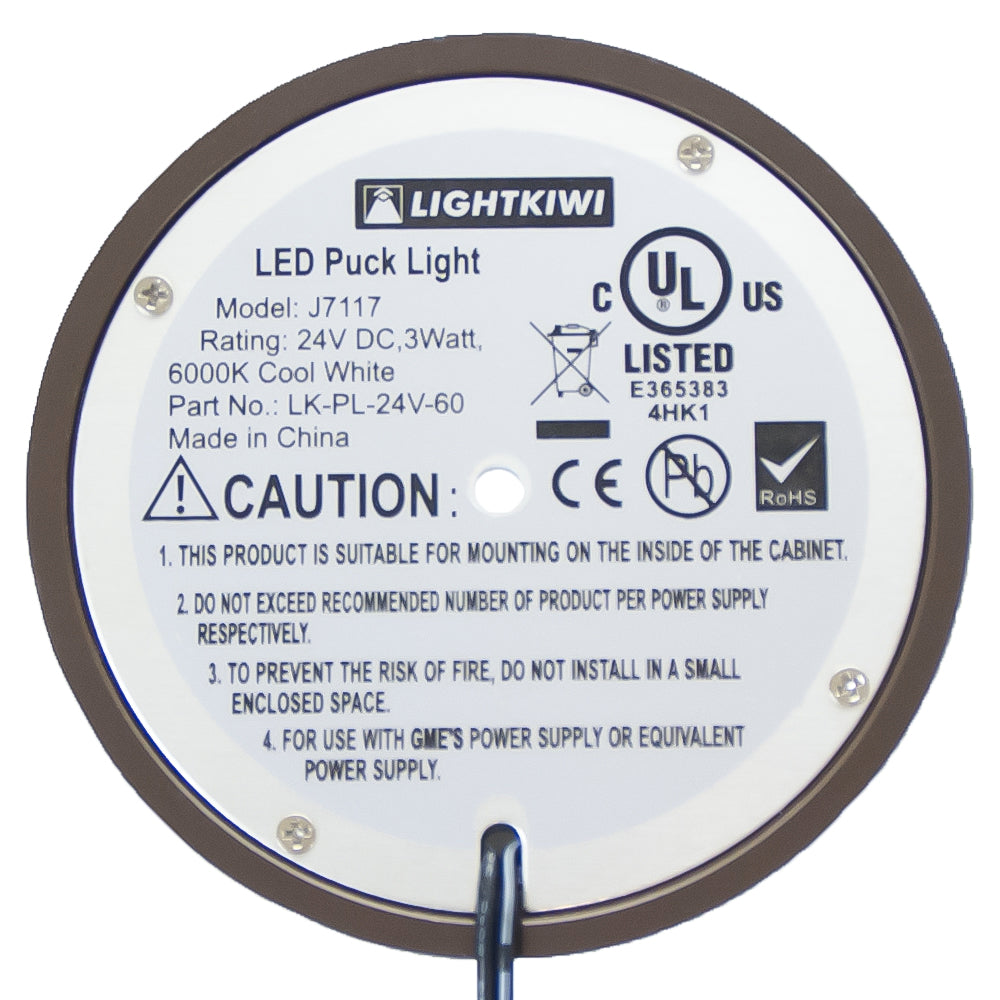

- To ensure maximum safety, Modular 3.5 inch LED Puck Light and Power Supply have been certified by UL.

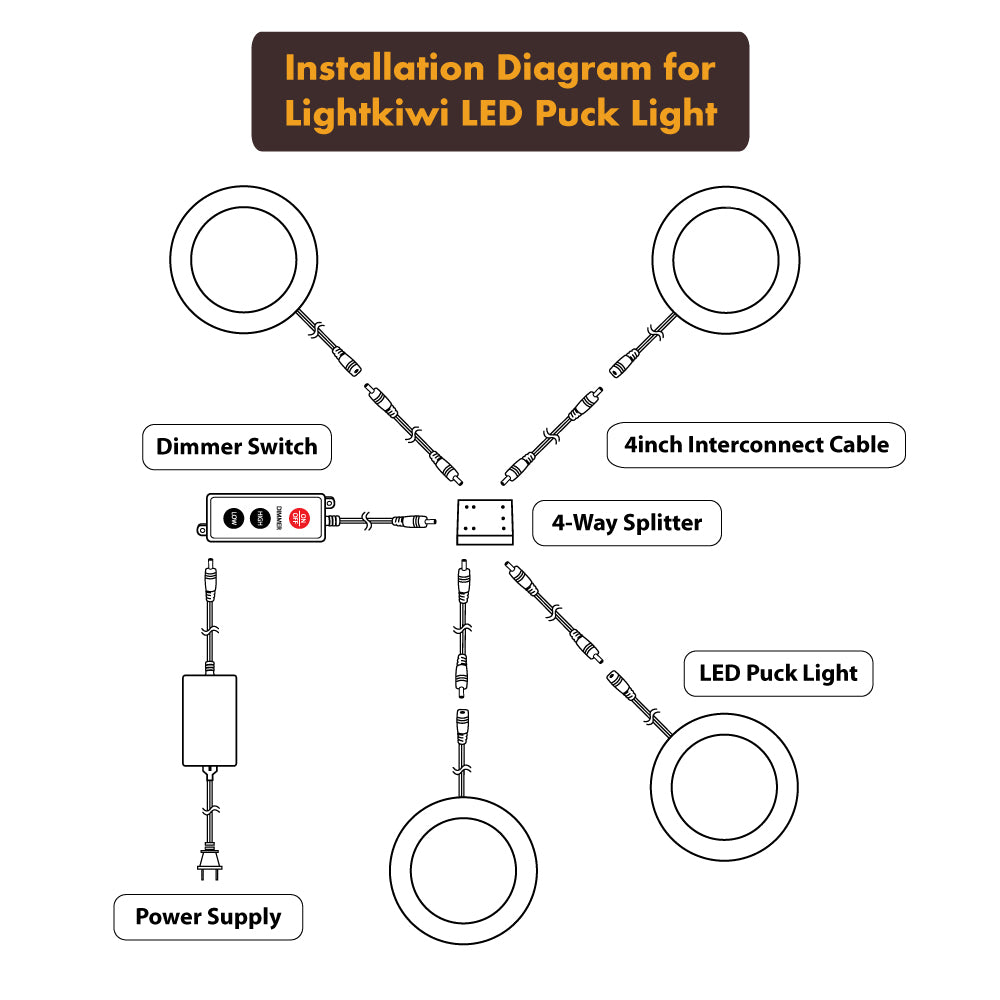

What's Included
- 4 x Lightkiwi 3.5 inch Cool White LED Puck Light
- 1 x 12 Watt Power Supply - Link up to (4) 3.5 inch LED Puck Light
- 1 x Dimmer Switch
- 1 x 4-way Splitter
- 4 x 4-inch Interconnect Cable
- 4 x Mounting Screw
*Individual LED puck light comes with pre-installed 3.2 ft interconnect cable*
If you want a different dimmer type, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.
- Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
- Rotary Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
- Wireless Dimmer Switch (Dial Remote Control + Receiver) for Modular LED Under Cabinet Lighting
[Dimension]
3.5 Inch LED Puck Light
3.54 x 0.28 Inch. (90 x 7 mm)
12 Watt Power Supply
2.70 x 1.92 x 1.04 Inch (68.5 x 48.78 x 26.42 mm)
Dimmer Switch
3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)
Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.
If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.
Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ. Please use matched wattage of power supplies for the best result.
Electrical | |
Wattage | 12 Watt |
Voltage | 24 Volt |
Photometrics | |
Lumens | 1120 |
Life Hours | 40,000 |
Color | Cool White |
Color Temperature | 6000 Kelvin |
LED Chipset Array | 42 LED |
Dimensions | |
Diameter | 3.54 inch / 90 mm |
Thickness | 0.28 inch / 7 mm |
Certifications | |
Certification | UL Listed / CE / RoHS |
Materials | |
Lighting Type | 3.5" Puck |
Other Specifications | |
Wattage Equivalent | 120 Watt |
Number of Lighting | 4 |
