Hardwire Kit, Direct Wire for LED Under Cabinet Lighting - 50 Watt
Lightkiwi Hardwire Kit provides all the components which you would need to do hardwire installation with Lightkiwi(R) Modular Under Cabinet Lighting Panel(s). The purpose of this kit is to enable the usability of a wall dimmer switch to control Lightkiwi Modular Under Cabinet Lighting Panel(s) since the standard transformer wouldn't be compatible with the wall dimmer switch.
Compatible Lighting
- LED Standard Panels
- LED Puck Lights
- LED Lilium Panels
- LED Dunn Panels
- LED Triangle Panels
- LED Waterproof Panels

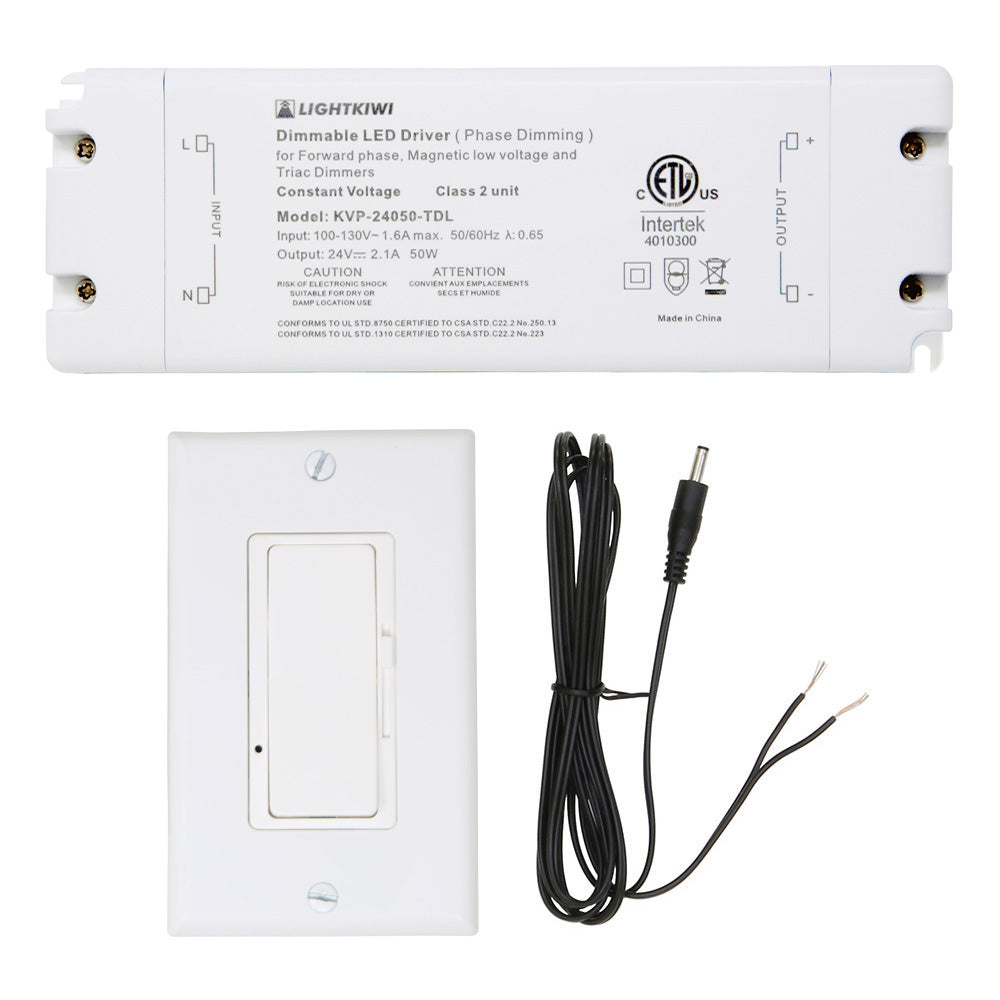

What's Included
- 50 Watt Phase Cut Dimmable Transformer (24VDC) for LED Under Cabinet Lighting
- Wall Dimmer Switch w/ Wallplate (White)
- 6ft Interconnect Cable for Modular LED Under Cabinet Lighting (One End with Bare Wire)

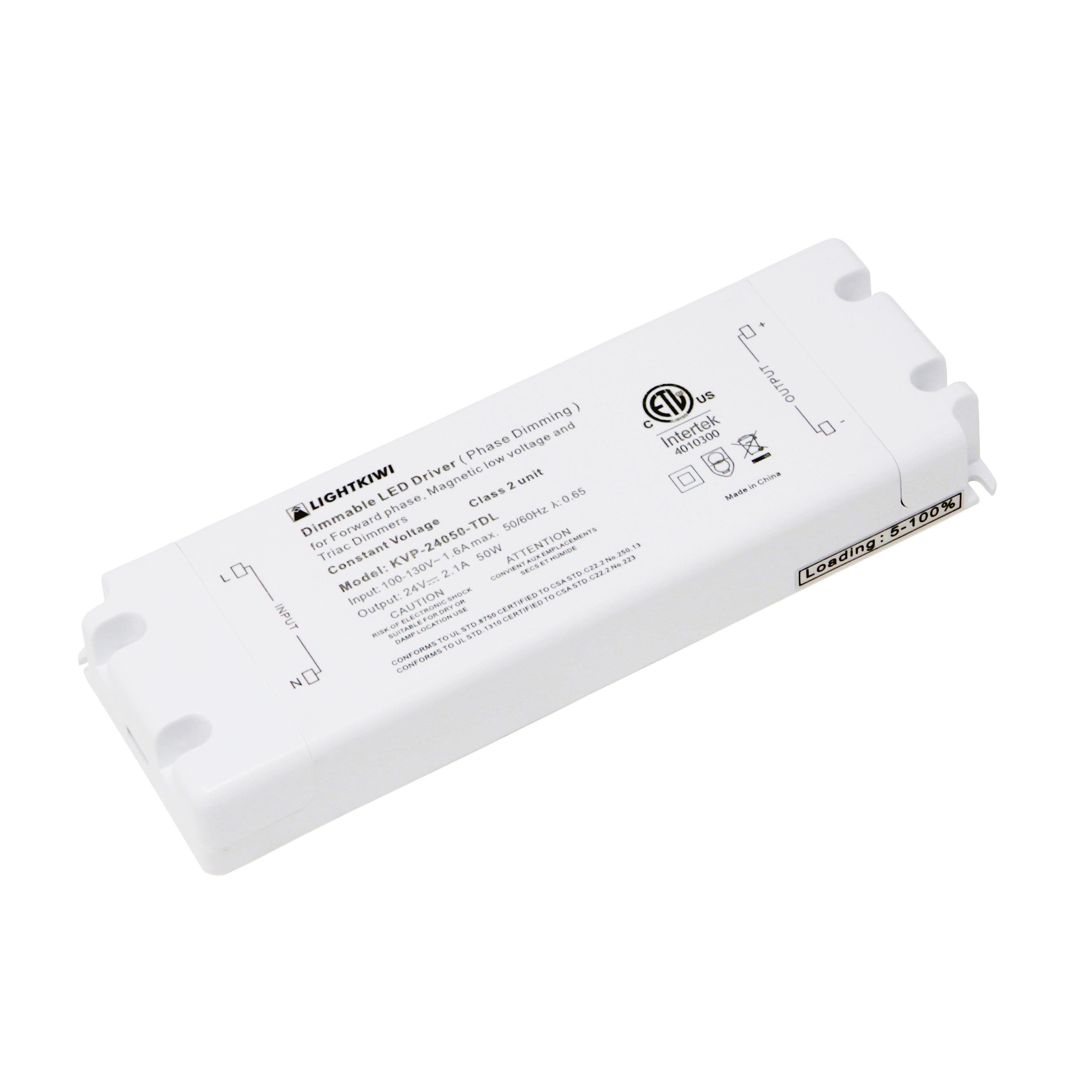

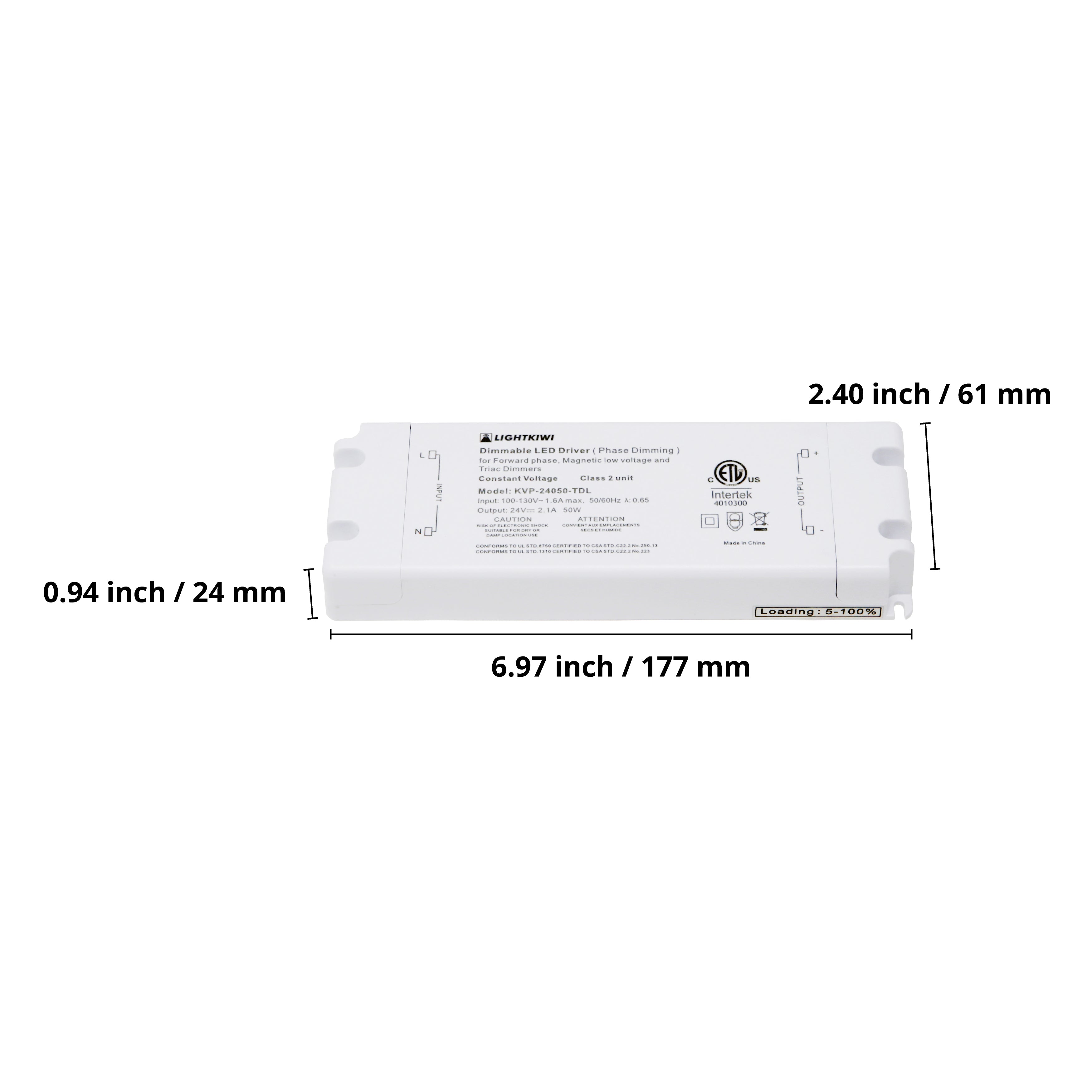

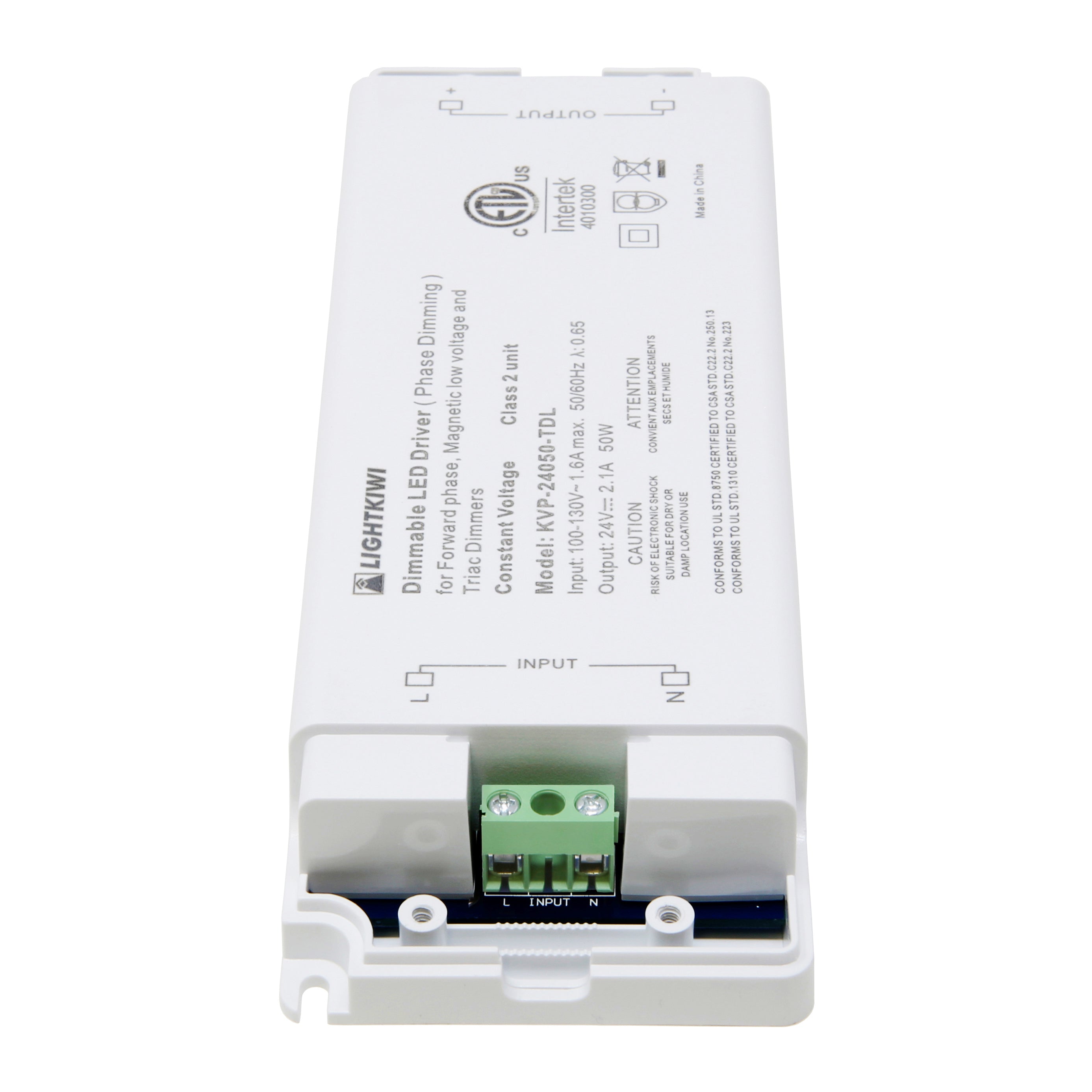

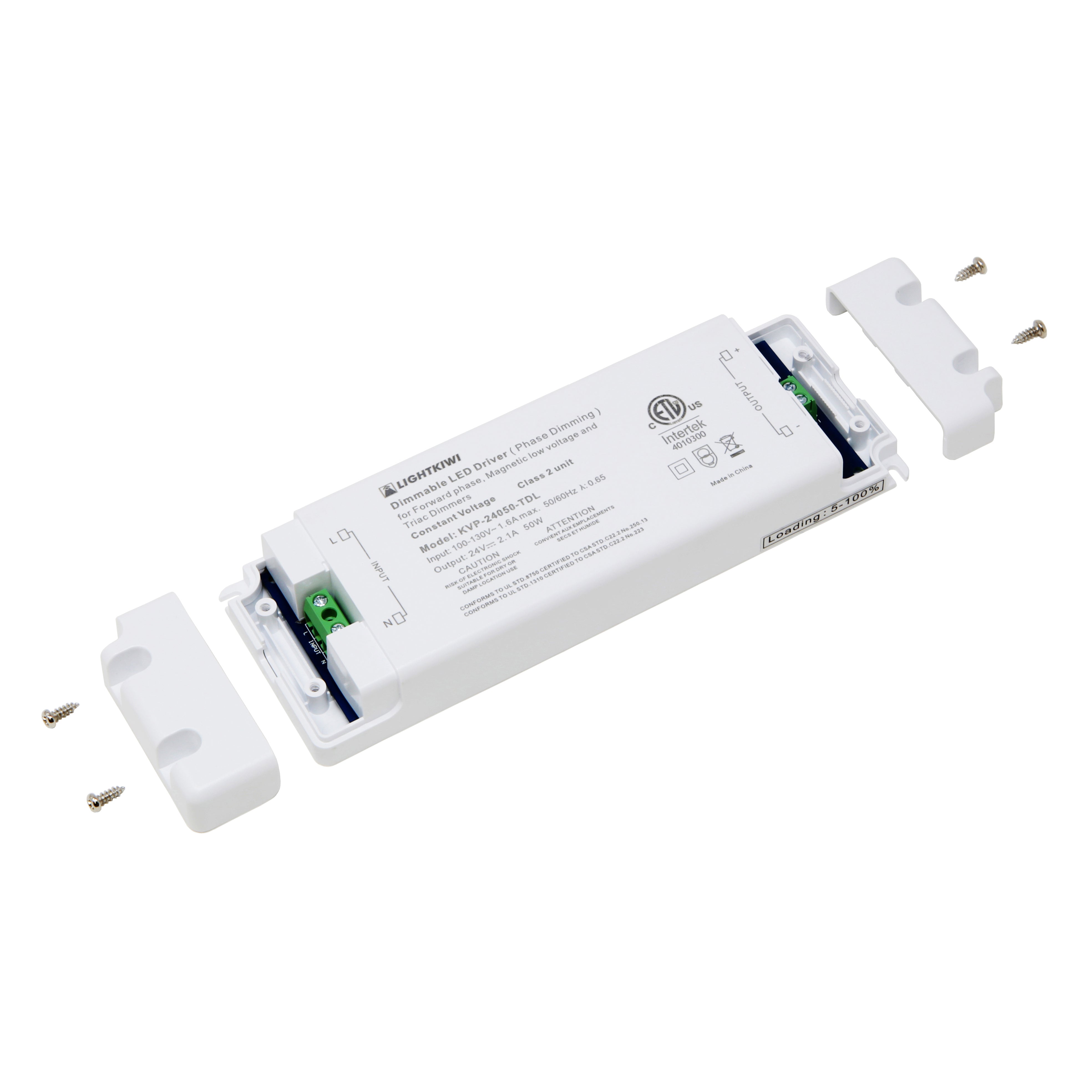

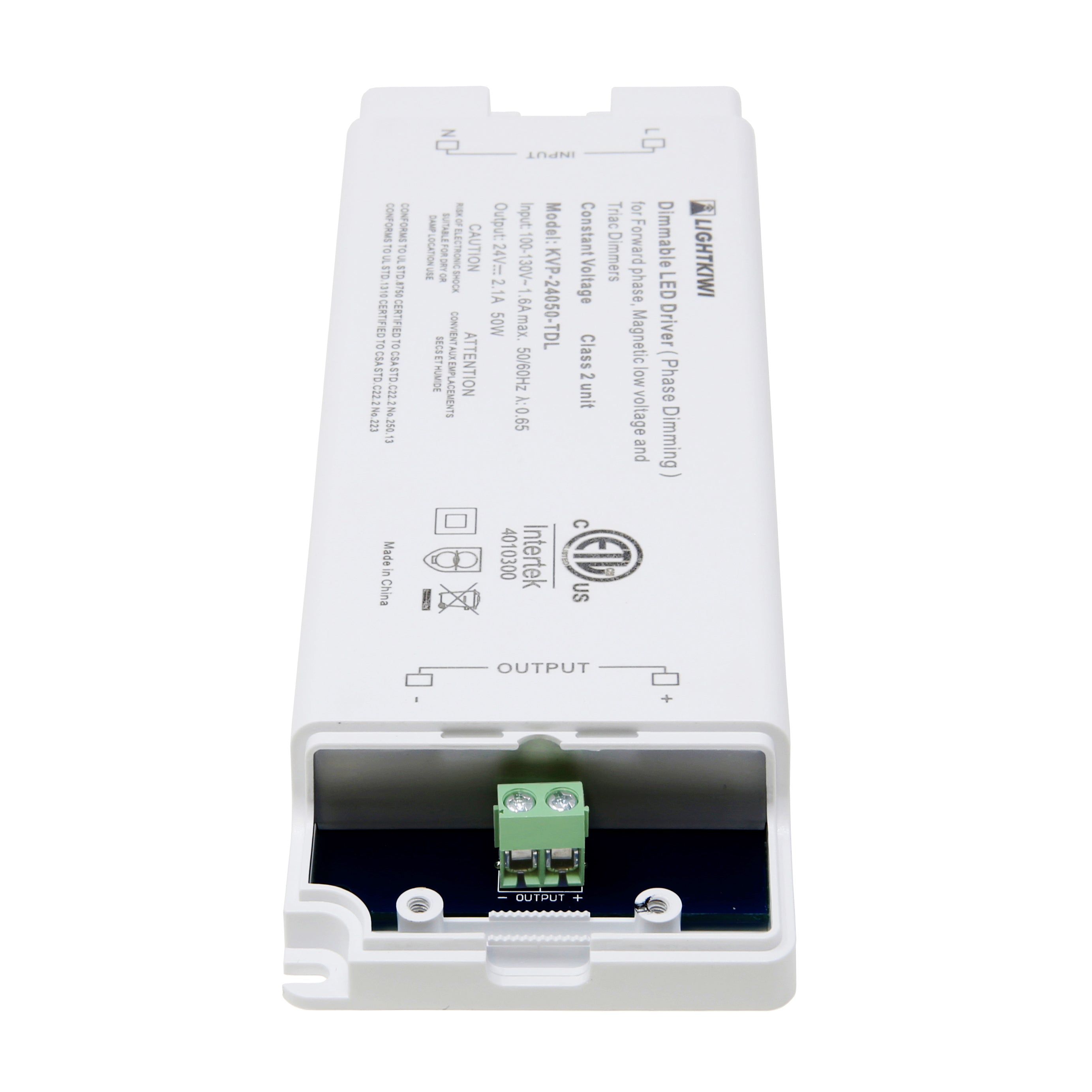

[50 Watt Phase Cut Dimmable Transformer (24VDC)]
Use 50 Watt Dimmable Transformer (24VDC) to hard wire and dim your LED under cabinet lighting with a wide variety of compatible wall dimmer switches. The transformer is easy and safe to install with a low-profile plastic enclosure and is the perfect choice for LED under cabinet lighting.
Features
- Flicker-free dimming
- Easy and safe installation
- Auto-Reset Protection for short circuits & over-voltage
- ETL Listed
[6ft Interconnect Cable (One End with Bare Wire)]
Unlike, the standard 6ft Interconnect Cable comes with both ends with DC connector, the 6ft Interconnect Cable in this kit has one end with bare wire to connect to dimmable transformer. Once you install the interconnect cable to the dimmable transformer, it enables easy connection as plug and play to install the rest of the lightings.
Support Files:
Wall Dimmer Switch Compatibility List
Modular LED Under Cabinet Lighting Power Requirement Chart
Troubleshoot:
If there is no power from the output, please change the polarity of the installed interconnect cable as shown in the link below.

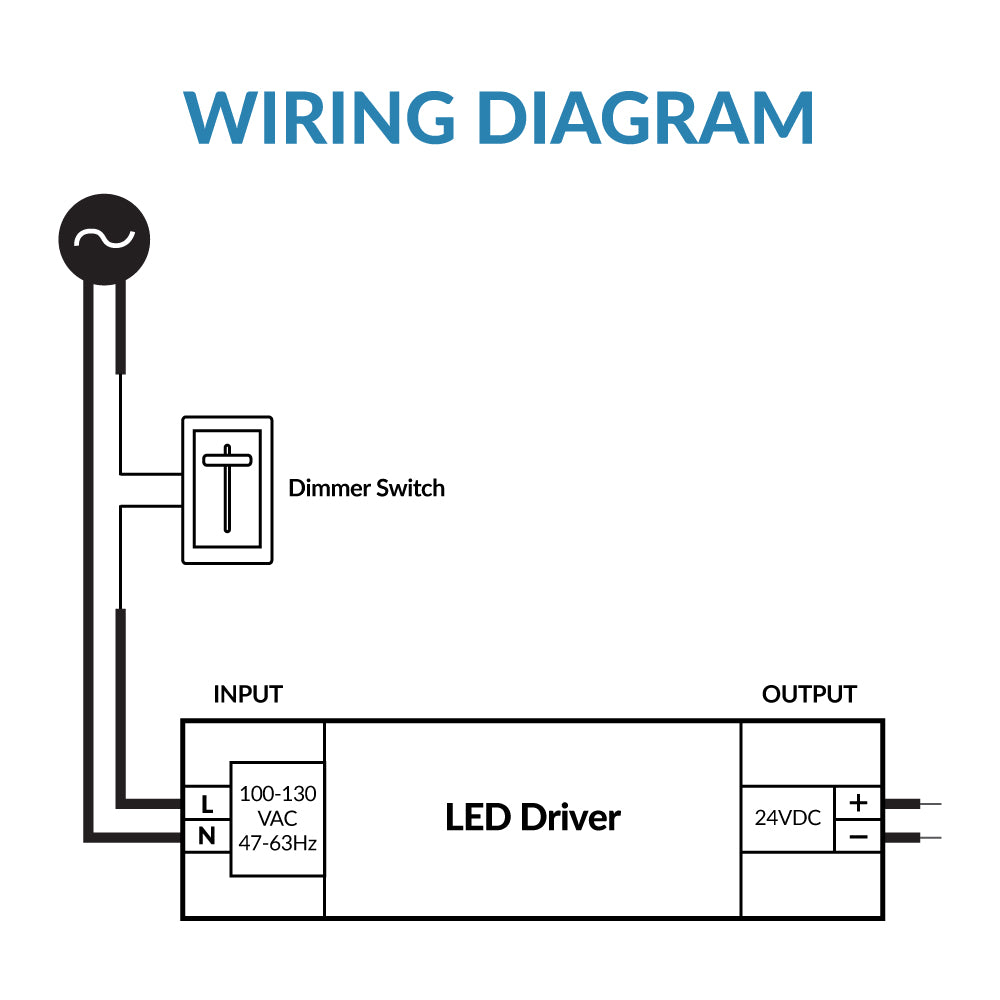

Diagram
