12 Inch Cool White Modular LED Under Cabinet Lighting - Basic Kit (1 Panel)

• Only 0.35 inch / 9 mm thick (60 percent thinner than the standard under cabinet lighting*).
• Sturdy aluminum body. One of the best in the market for its exceptional durability.

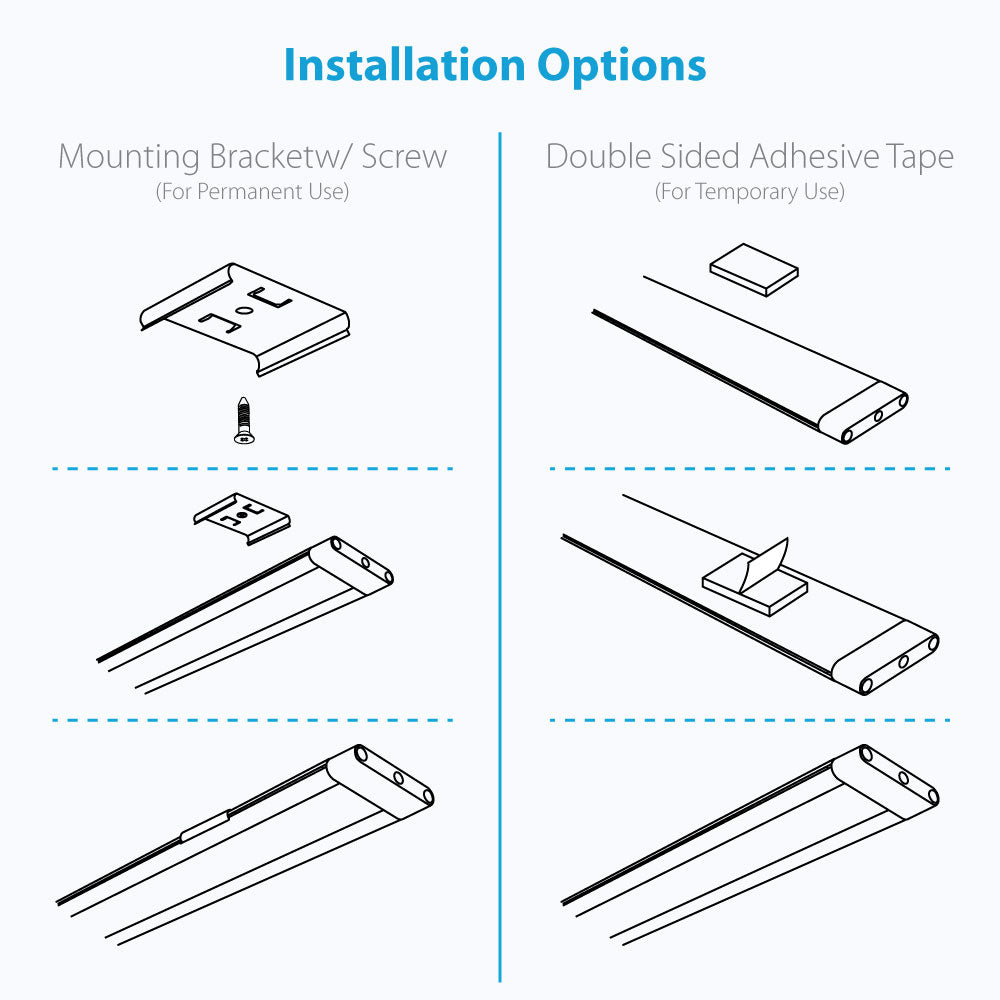

• Simple plug-in installation. For most cases, the only tool you will need is a screwdriver for the mounting bracket.
• Bright 280 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
• Each individual has a bright 42 LED.
• It only consumes a 3-watt maximum. Saves at least 80 percent of energy.
• 24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

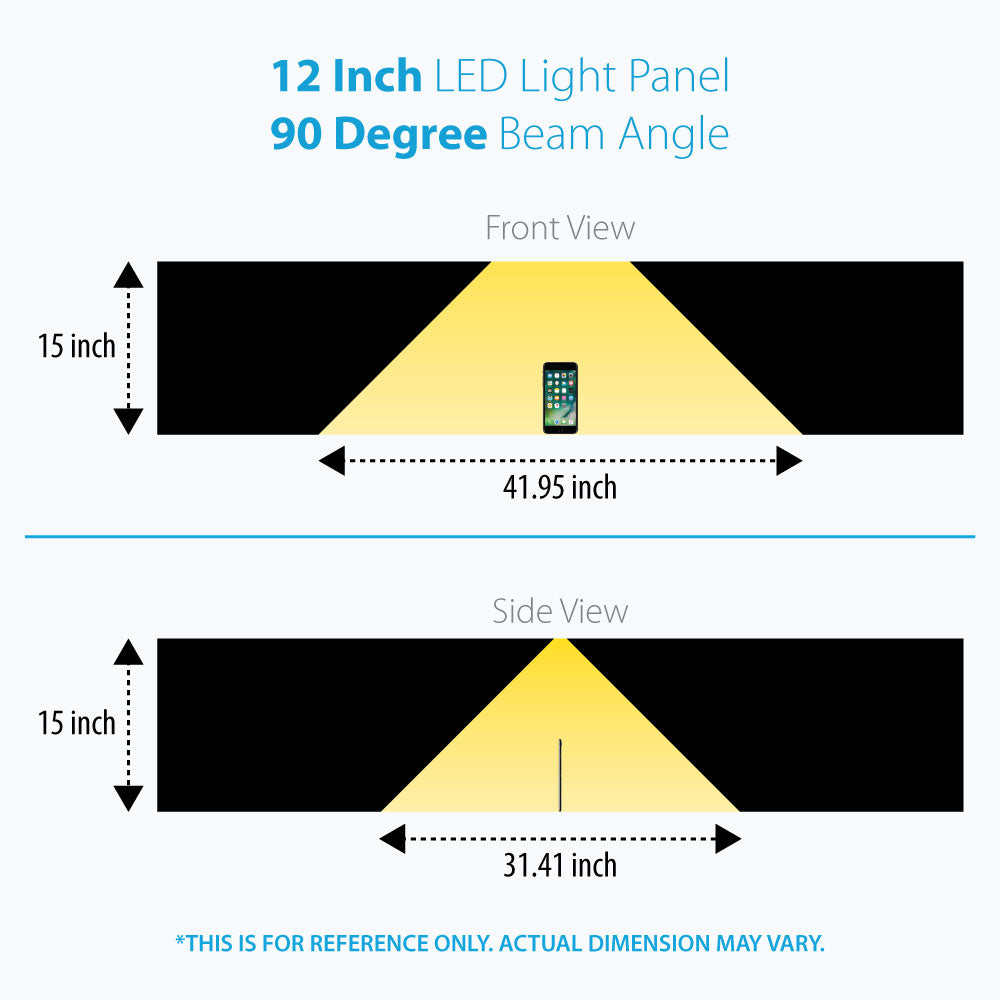

• The light distributes at a 90-degree beam angle to optimize & maximize lighting under the cabinet.
• Easily control the brightness to the desired level using the inline dimmer switch.
• To ensure maximum safety, Modular LED Light Panel & Power Supply have been certified by UL.

What's Included

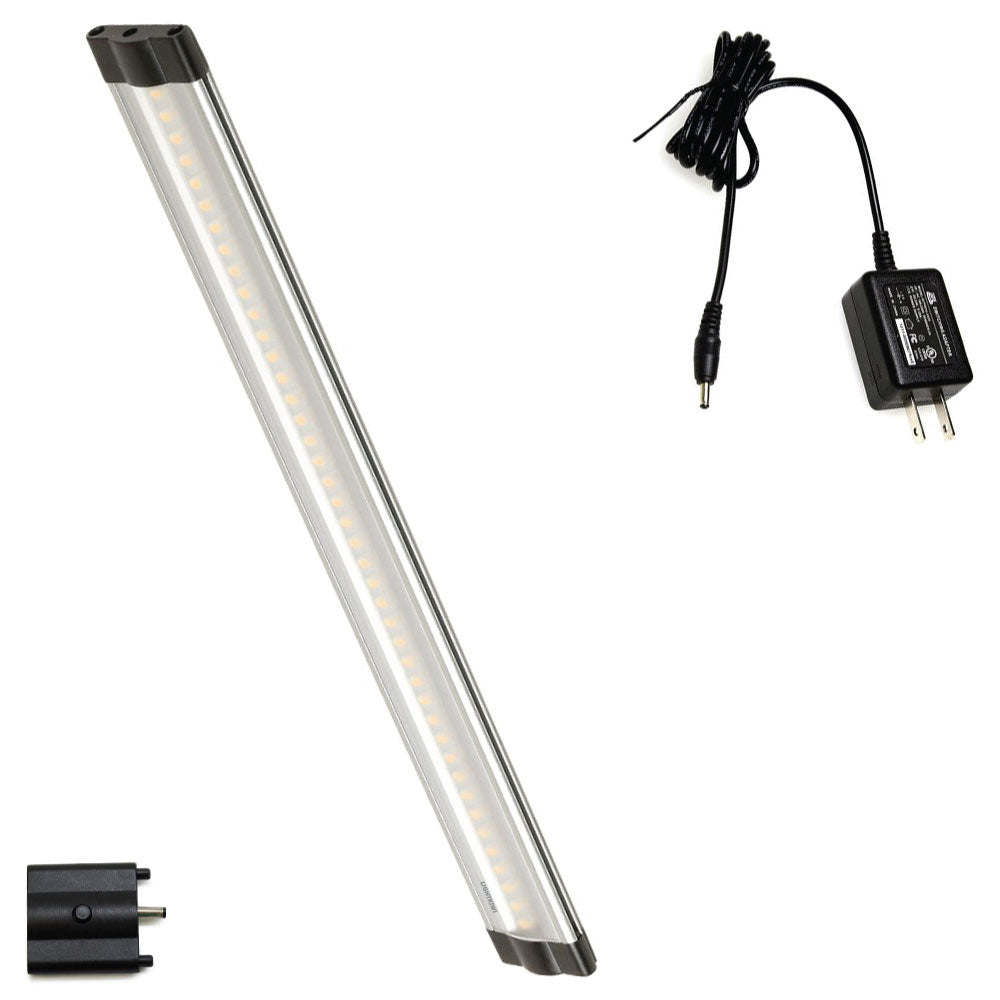

• 1 x Lightkiwi 12 Inch Cool White Modular LED Under Cabinet Light Panel
• 1 x 3ft Interconnect Cable
• 1 x Modular Connector
• 2 x Mounting Brackets
• 1 x 6 Watt Power Supply - Link up to (2) 12-inch panels
• 1 x Master On/Off Switch

If you want a dimmer switch instead of an on/off switch, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.

• Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
• Rotary Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
• Wireless Dimmer Switch (Dial Remote Control + Receiver) for Modular LED Under Cabinet Lighting

[Dimension]

12 Inch LED Light Panel
11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)

6 Watt Power Supply
1.89 x 1.38 x 0.98 Inch (48 x 35 x 25 mm)

Master On/Off Switch
1.29 x 1.34 x 0.43 Inch (33 x  34 x 11 mm)

Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)

Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.

If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.

Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ.  Please use matched wattage of power supplies for the best result.
