Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)
Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)

Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting - Standard Kit (4 Panel)

Sale price$84.99
SKU: Y2054
Switch Type:Dimmer Switch
Power Supply Wattage:24W
Quantity:

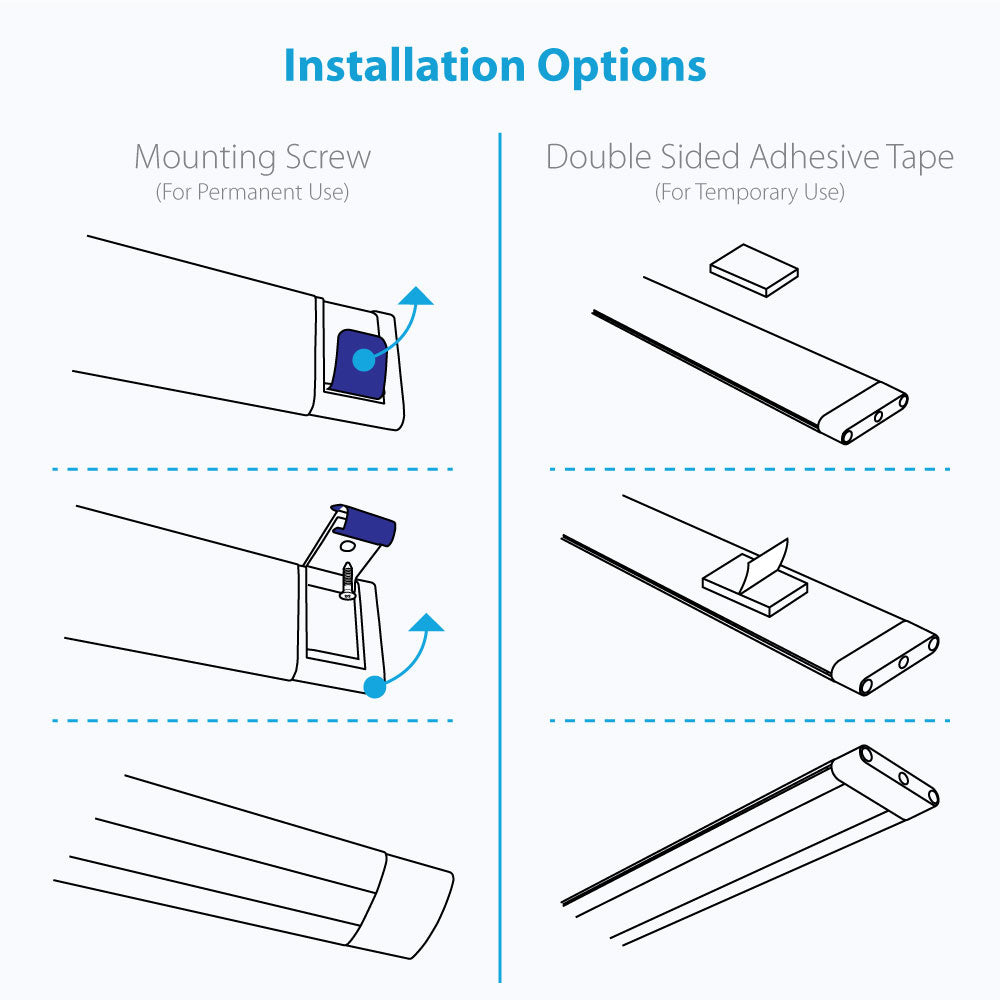

  • Simple Plug-in Installation. For most of the cases, the only tool you will need is a screwdriver for the built-in mounting hinge.
  • Bright 1600 Lumen (about 20 percent brighter than most under cabinet lighting available in the market).
  • Each individual unit has Bright 49 LED
  • Only Consumes 20 Watt Maximum. Saves at least 80 percent on energy.
  • 24 Voltage (24VDC) offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

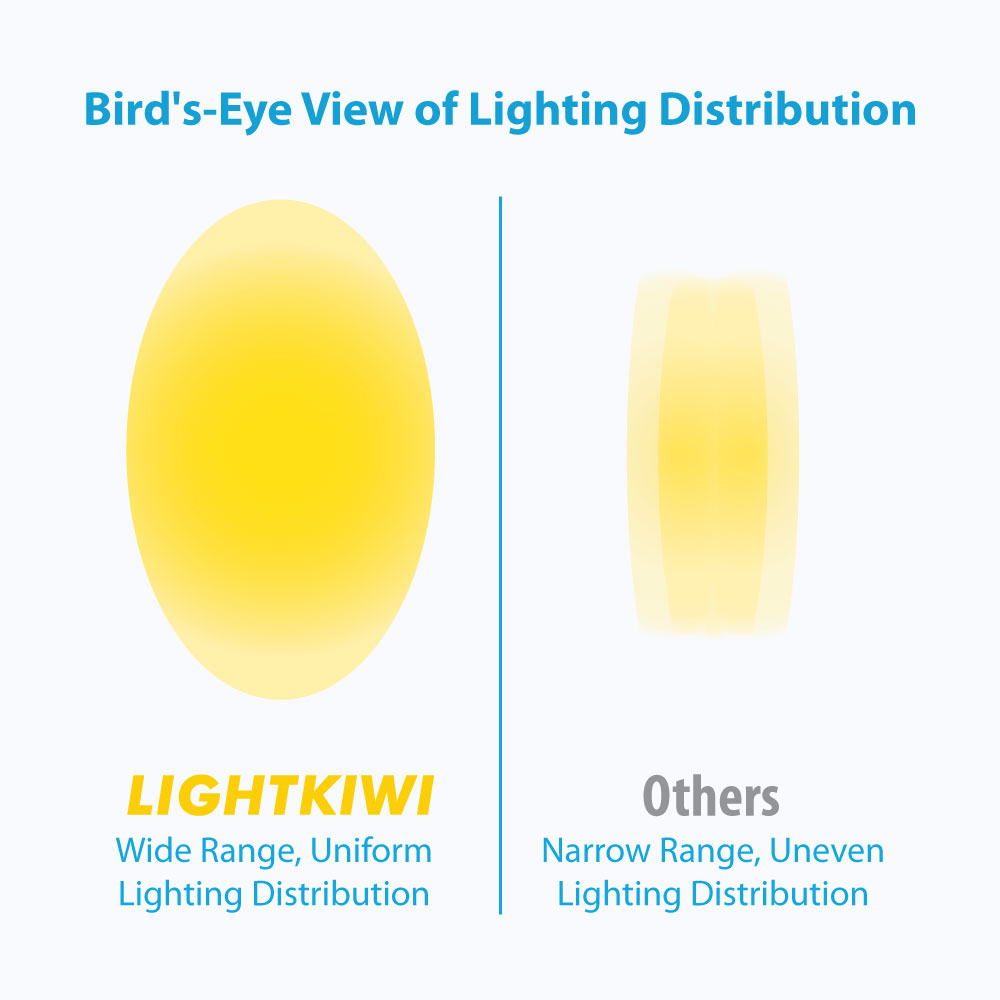

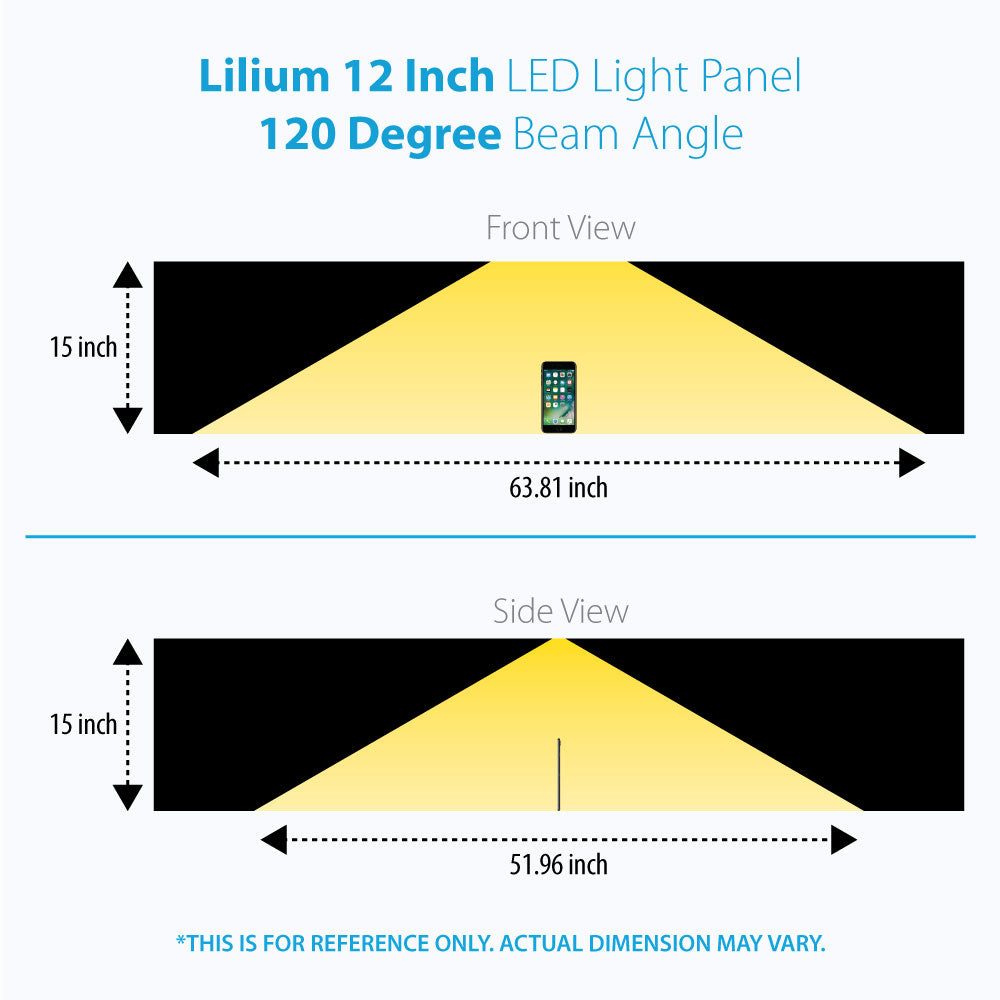

  • The light distributes in 120 Degree Beam Angle to optimize and maximize lighting under the cabinet.
  • Easily Control the Brightness to the desired level using the inline dimmer switch.
  • To ensure maximum safety, Modular LED Light Panel has been Certified by UL.

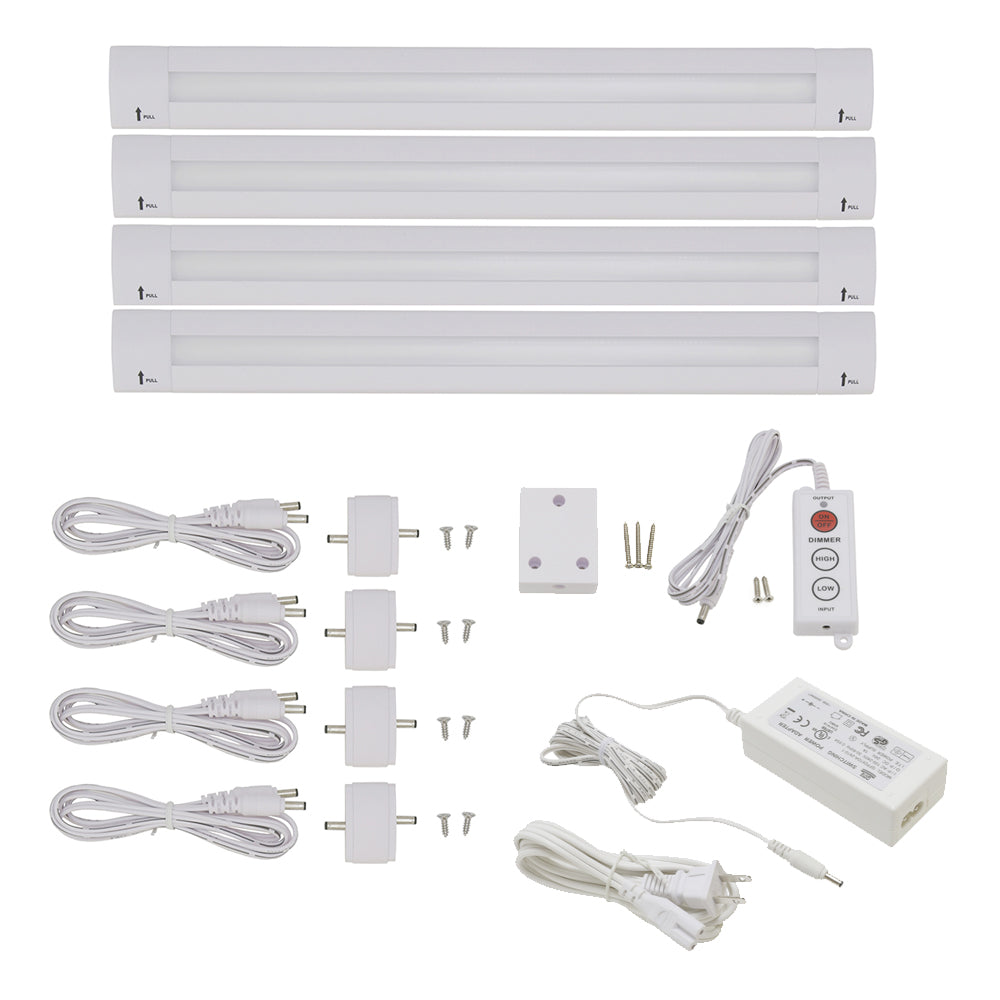

What's Included

  • 4 x Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting Panel
  • 1 x 24 Watt Power Supply (White) - Link Up to (4) Lilium 12 inch LED Panel
  • 1 x Dimmer Switch (White)
  • 1 x 4 Way Splitter (White)

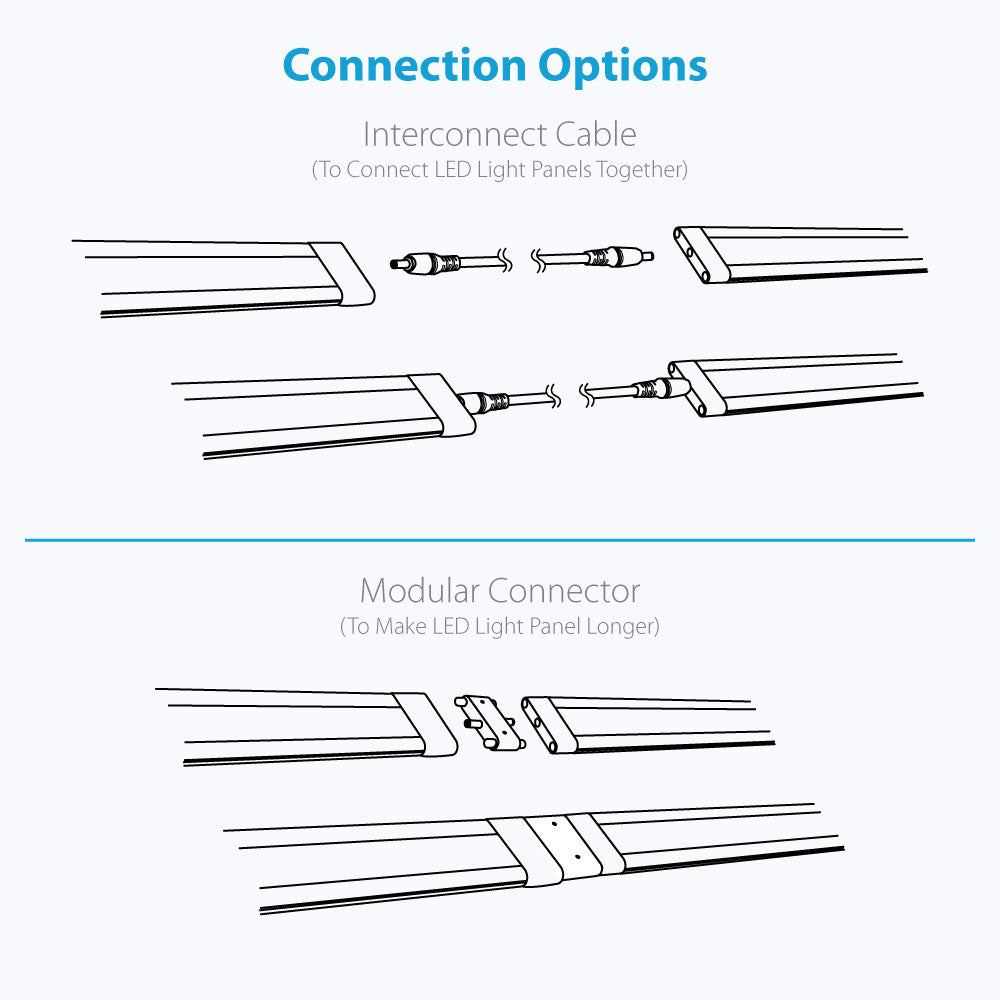

  • 4 x 3ft Interconnect Cable
  • 4 x Modular Connector
  • 8 x Mounting Screw

If you want a different dimmer type, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.


[Dimension]

Lilium 12 Inch LED Light Panel
11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)

24 Watt Power Supply
3.82 x 1.77 x 1.14 inch (97 x 45 x 29 mm)

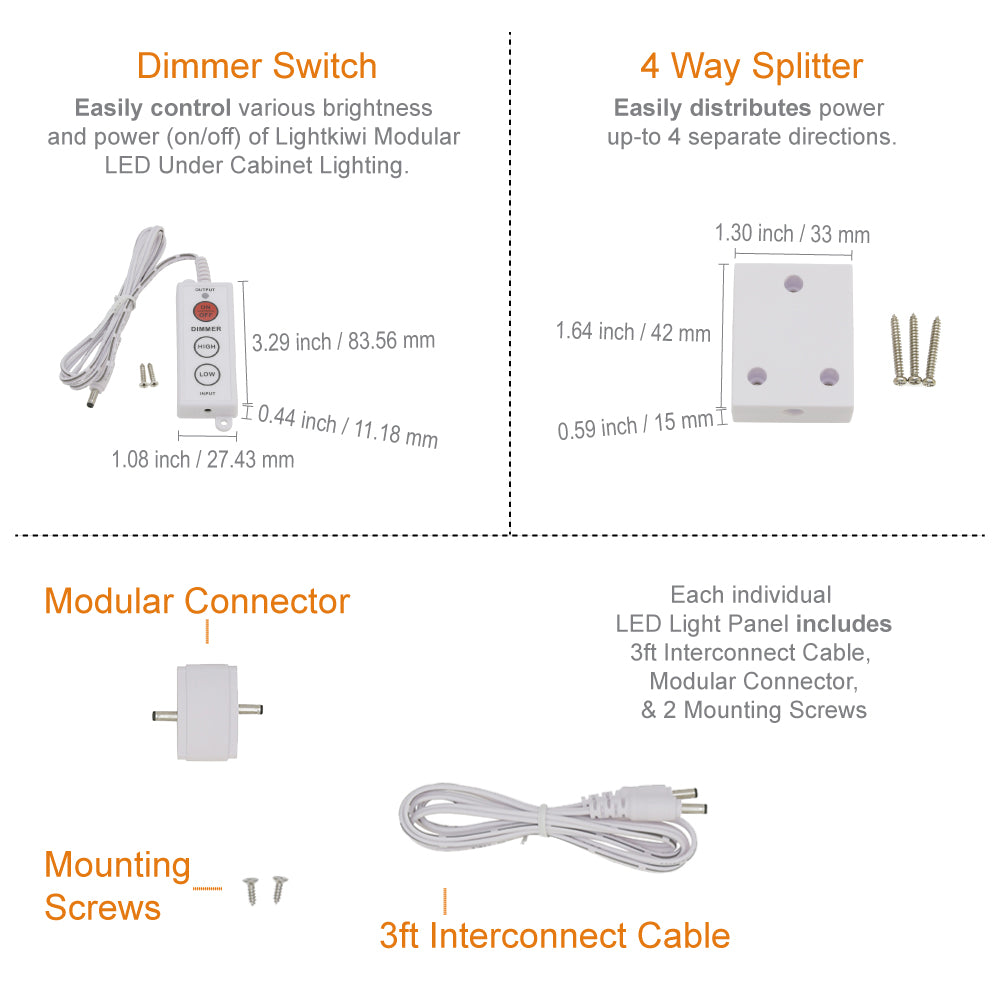

Dimmer Switch
3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)

4-Way Splitter
1.64 x 1.30 x 0.59 Inch. (42 x 33 x 15 mm)

Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)


Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.

If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.

Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ.  Please use matched wattage of power supplies for the best result.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
K
Kindle Customer
white bright lights

I purchased a different vendors LED light bar for under counter lighting and was very unhappy with the rainbow colors. So I bought the Lightkiwi LED lights and am very happy. 1. Their much brighter than I expected and 2. The light given off is all white. Product very easy to install, their just perfect.

j
jims automotive center
Easy to install

Met my expectations . very bright. Easy to install. Pleased my wife.

W
William M McDowell

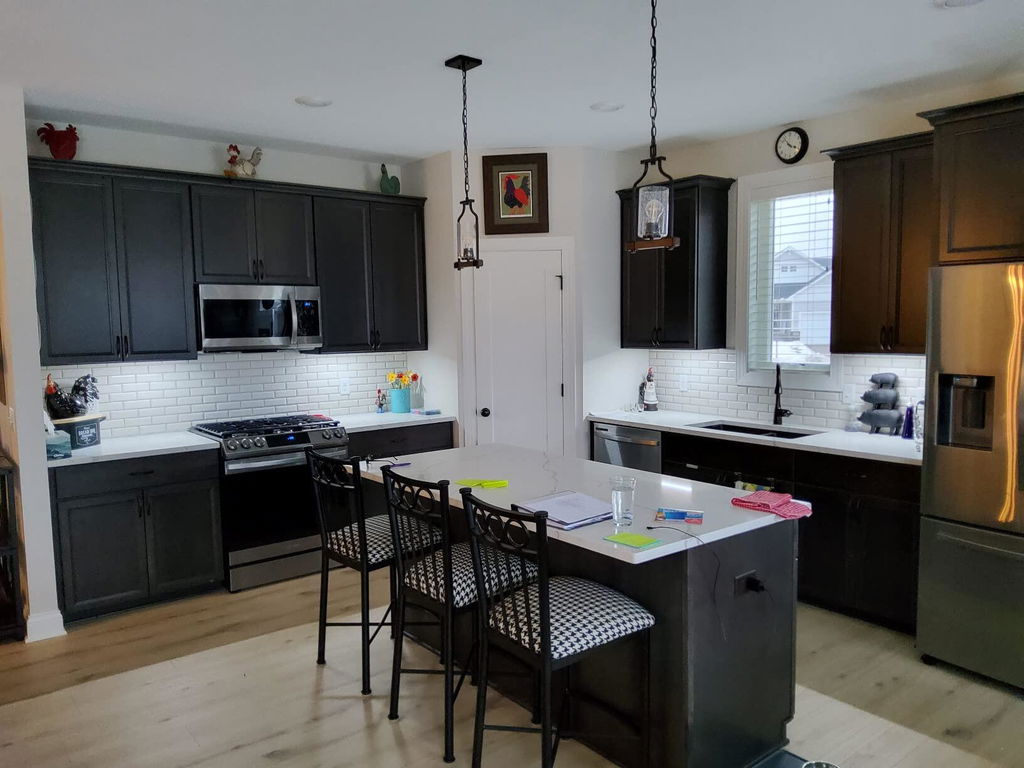

Great little light
