Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting Panel
Quantity:
POWER SUPPLY NOT INCLUDED

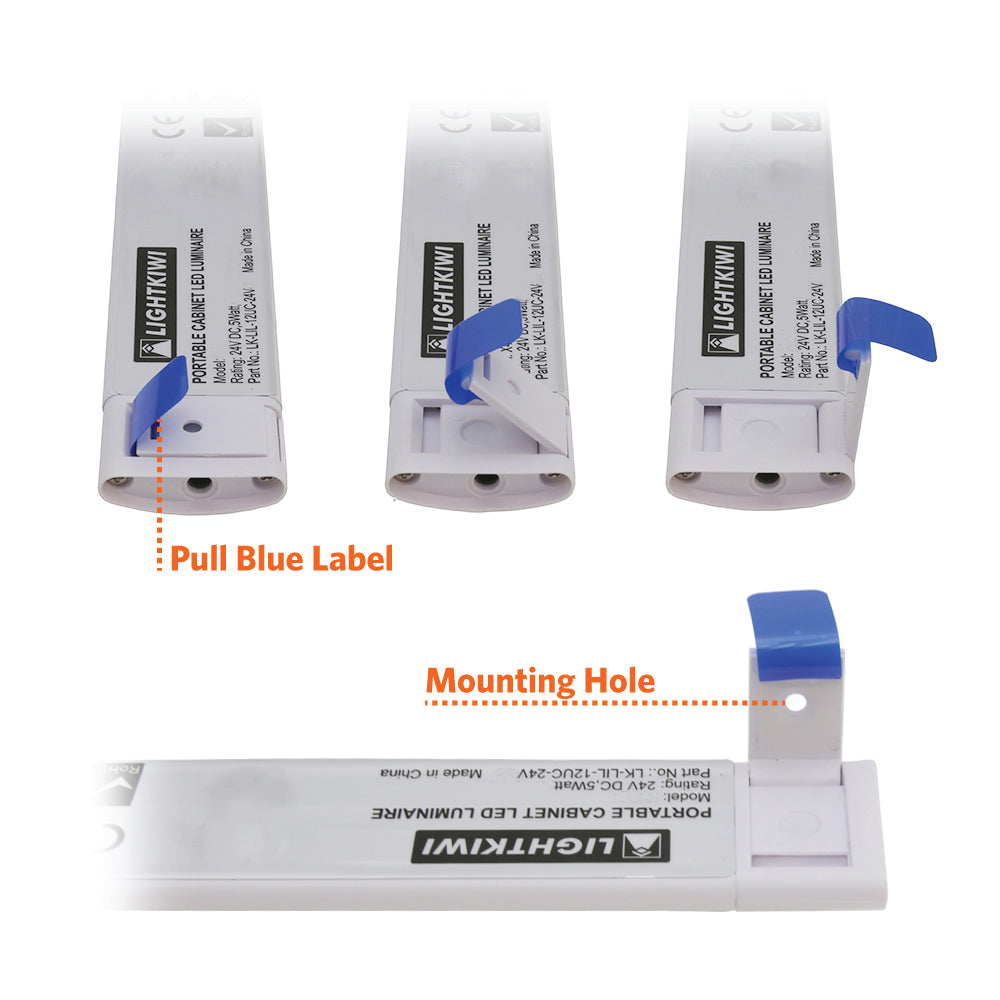

- Simple Plug-in Installation. For most cases, the only tool you will need is a screwdriver for the built-in mounting hinge.
- Bright 400 Lumen (about 20 percent brighter than most under cabinet lighting available in the market).
- Each individual unit has Bright 49 LED
- Only Consumes 5 Watt Maximum. Saves at least 80 percent of energy.
- 24 Voltage (24VDC) offers highly energy-efficient, minimum heat contribution, longer life span, and safer.
- The light distributes at 120 Degree Beam Angle to optimize and maximize lighting under the cabinet.
- Easily Control the Brightness to the desired level using the inline dimmer switch.

Important: Please ensure the wattage of the combined units does not exceed the maximum wattage of the power supply used.
Modular LED
Under Cabinet Lighting
Power Requirement Chart
-
What's Included
- Lightkiwi Lilium 12 Inch Cool White Modular LED Under Cabinet Lighting Panel
- 3ft Interconnect Cable
- Modular Connector
- (2) Mounting Screw
-
Product Dimension
- 12.00 x 1.30 x 0.39 inch (305 x 33 x 10 mm)
| Electrical | |
| Wattage | 5 Watt |
| Voltage | 24 Volt |
| Photometrics | |
| Lumens | 400 |
| Life Hours | 40,000 |
| Color | Cool White |
| Bulb Shape | LED Panel |
| Color Temperature | 6000 Kelvin |
| Beam Angle | 120 Degree |
| LED Chipset Array | 49 LED |
| Dimensions | |
| Length | 11.75 inch. |
| Diameter | 1.32 inch. |
| Thickness | 0.38 inch |
| Certifications | |
| Certification | UL Listed / CE / RoHS |
| Materials | |
| Lighting Type | 12" Panel |
