300 Watt Stainless Steel (12V-13V-14V-15V) Multi-Tap Low Voltage Transformer for Landscape Lighting
Timer:Without Timer
Photocell:Without Photocell
Quantity:
300 Watt Heavy-Duty Stainless Steel Low Voltage Transformer for low voltage outdoor lighting, landscape lighting, lawn lighting and garden lighting.
-

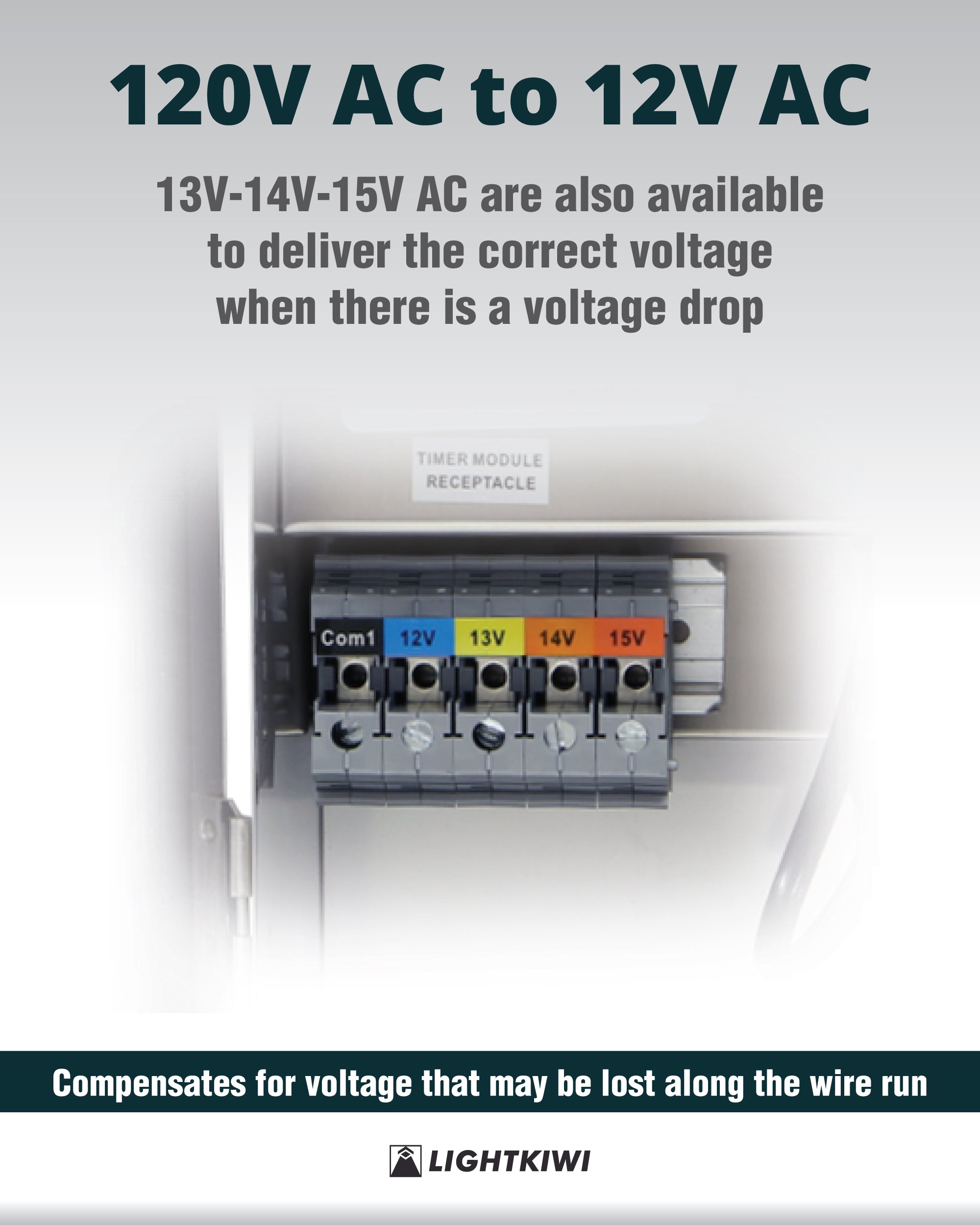

Multi-Tap Output Voltage for Longer Wire Run
- Input: 120V AC
- Output: 12V-13V-14V-15V AC
- Maximum Load: 70%
- Heavy Duty Stainless Steel
- Timer (Not Included) & Photocell (Not Included) Port Available - Allow to add a timer & photocell anytime.
- Suitable for Indoor and Outdoor use.
-
High-Performance Toroidal Core
- Quiet Operation, Great Reliability, and High Efficiency.
-
Dual Protection
- Primary: Auto Reset Thermal Circuit Breaker
- Secondary: 25A Magnetic Circuit Breaker
- Power Cord: 70” black 18AWG SJTW cord and plug set
- ETL Listed
-

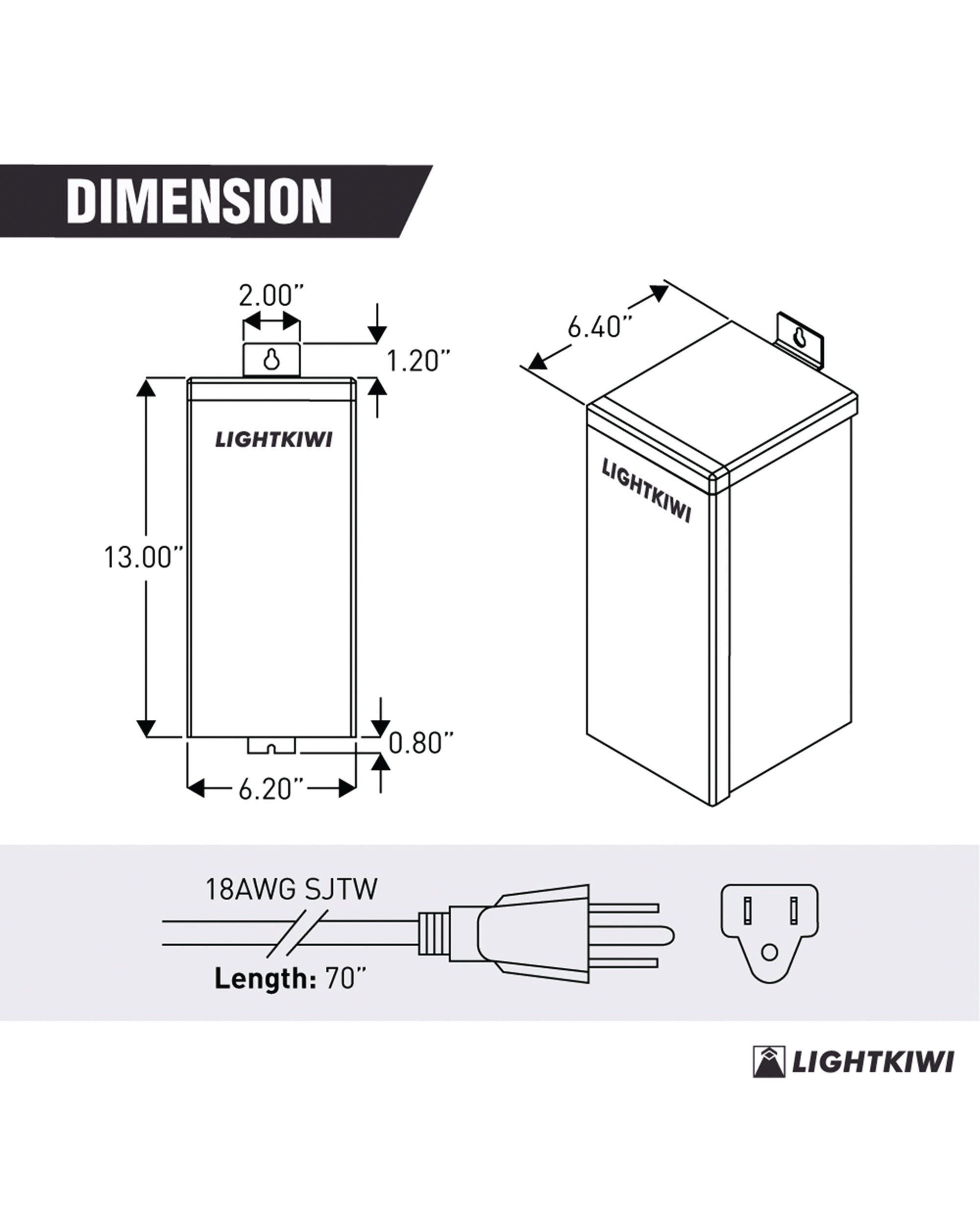

Product Dimension:
- Length: 6.4 inch
- Width: 6.2 inch
- Height: 13 inch
Maximum Number of Wire per Tab (Com1, 12V, 13V, 14V, 15V)
Wire Gauge | Wire Diameter | Number of Wire |
---|---|---|
10 AWG | 4.6 mm | 4 pcs |
12 AWG | 4.0 mm | 5 pcs |
14 AWG | 3.5 mm | 6 pcs |
16 AWG | 3.1 mm | 9 pcs |
18 AWG | 2.8 mm | 10 pcs |
Electrical | |
Input Voltage Range | 120V AC |
Output Voltage | 12V-13V-14V-15V AC |
Capacity | 300 Watt |
Com Port | 1 |
Dimensions | |
Weight | 18lbs |
Certifications | |
Certification | ETL Listed |
Materials | |
Finish | Stainless Steel |
Power Cord | 70" Black 18AWG SJTW Cord and Plug Set |
Other Specifications | |
Short Circuit Protection | Primary: Auto Reset Thermal Circuit Breaker <br>Secondary: 25A Magnetic Circuit Breaker |
Built-In Timer | None |
