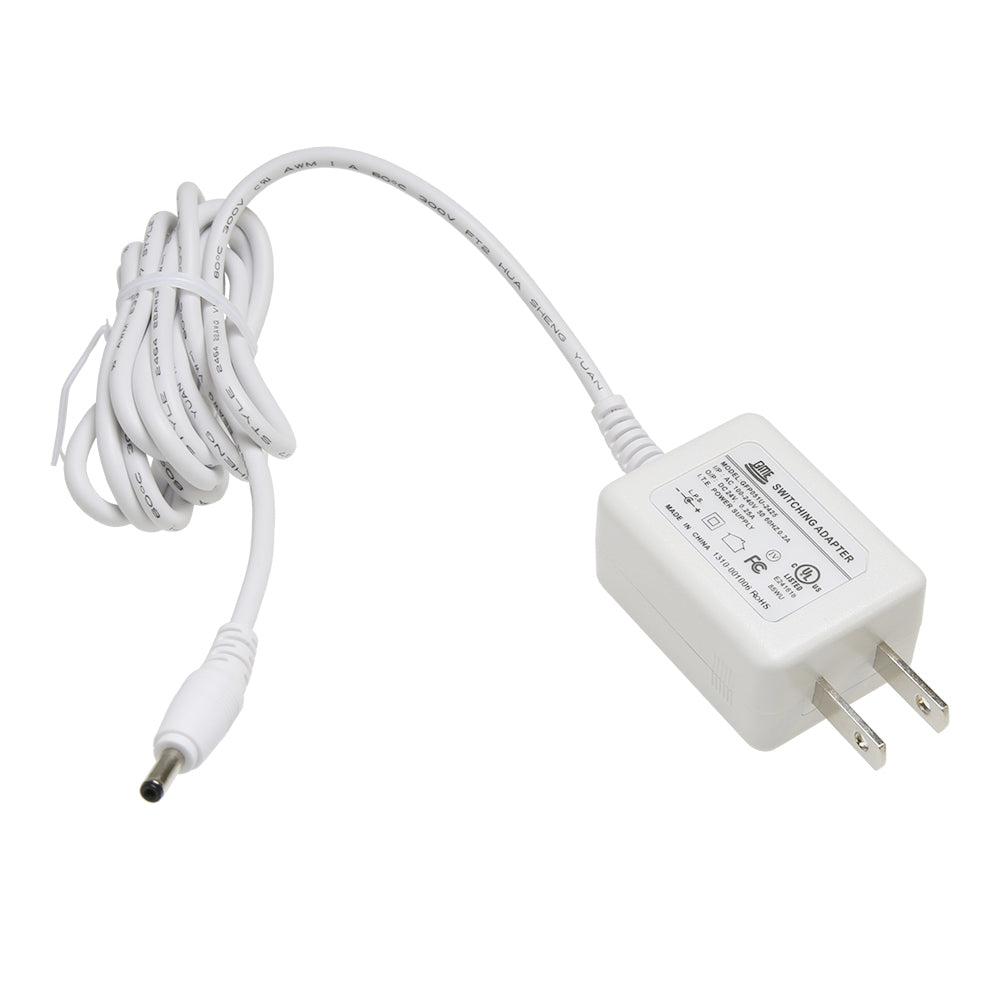

6 Watt Power Supply for Modular LED Under Cabinet Lighting (White)
6 Watt Power Supply for Modular LED Under Cabinet Lighting (White)

6 Watt Power Supply for Modular LED Under Cabinet Lighting (White)

$12.00
SKU: N9418
Quantity:

Lightkiwi 6 Watt Power Supply for Modular LED Under Cabinet Lighting deliver power and efficiency to your Lightkiwi Modular LED Under Cabinet System.

Modular LED
Under Cabinet Lighting
Power Requirement Chart



100-240V AC to 24V DC Power Adapter

  • Input
    • AC 100-240V
    • 50-60Hz
    • 0.2 A
  • Output
    • DC 24V
    • 0.25 A


Certifications

  • UL
  • CE
  • TUV
  • PSE
  • GS
  • FCC


Dimension

1.89 x 1.38 x 0.98 Inch (57.61 x 42.06 x 29.87 mm)



Hardwire Installation
If you plan to use wall dimmer switch, you need to do hardwire installation with dimmable transformer instead of the included power supply which plugs into wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V).

If not used with wall dimmer switch, included power supply can be used to do hardwire installation but if dimmer switch is needed, 24V dimmer switch is required.

Power Supply Start Up time
Depends wattage of power supply, the start up time may differ.  Please use matched wattage of power supplies for best result.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
C
CGC76
Works well for two foot-long LED light units, overheats with three foot-long light units.

It works well, getting a little warm with two foot-long LED light units, which is it's recommended use. I tried it with three foot-long LED light units but it heated up pretty quickly. I just wish it could handle more.
