Lilium 12 Inch Warm White Modular LED Under Cabinet Lighting - Premium Kit (3 Panel)
- Simple Plug-in Installation. For most of the cases, the only tool you will need is a screwdriver for built-in mounting hinge.
- Bright 1200 Lumen (about 20 percent brighter than most under cabinet lighting available in the market).
- Each individual unit has Bright 49 LED
- Only Consumes 15 Watt Maximum. Saves at least 80 percent on energy.
- 24 Voltage (24VDC) offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

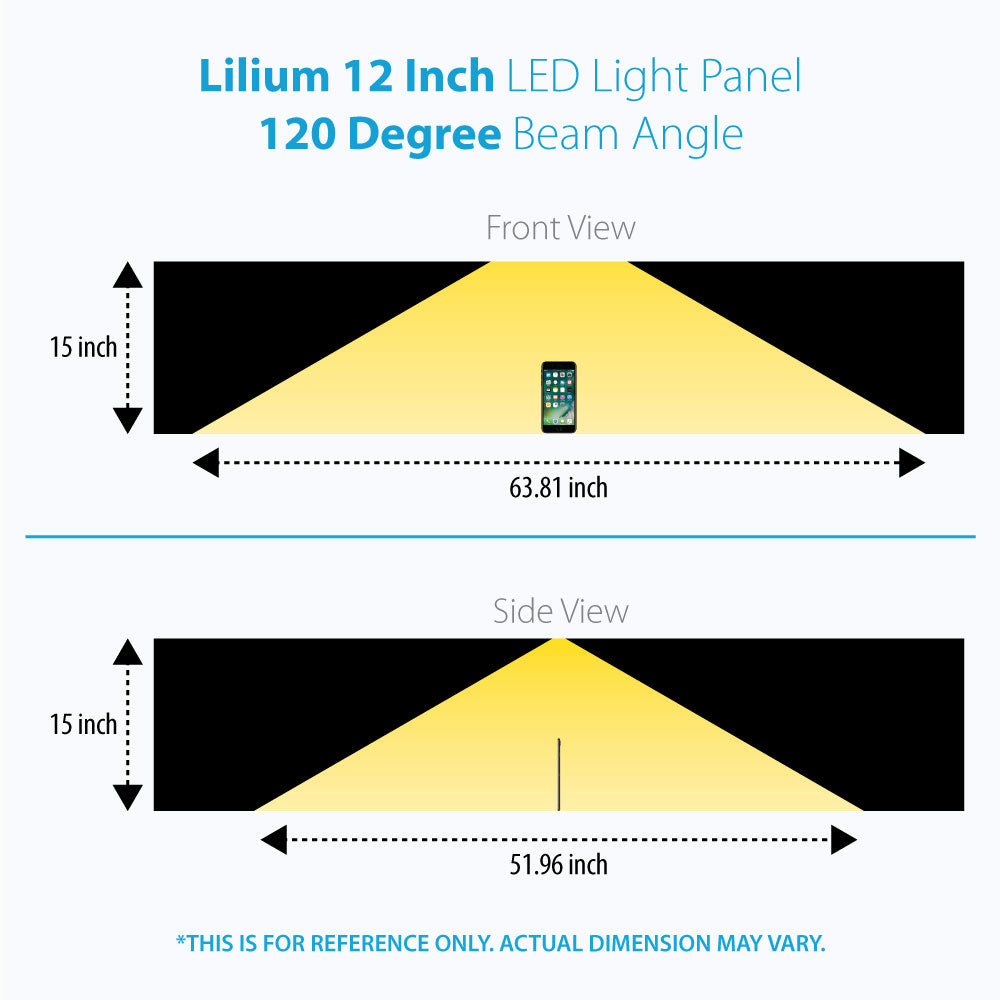

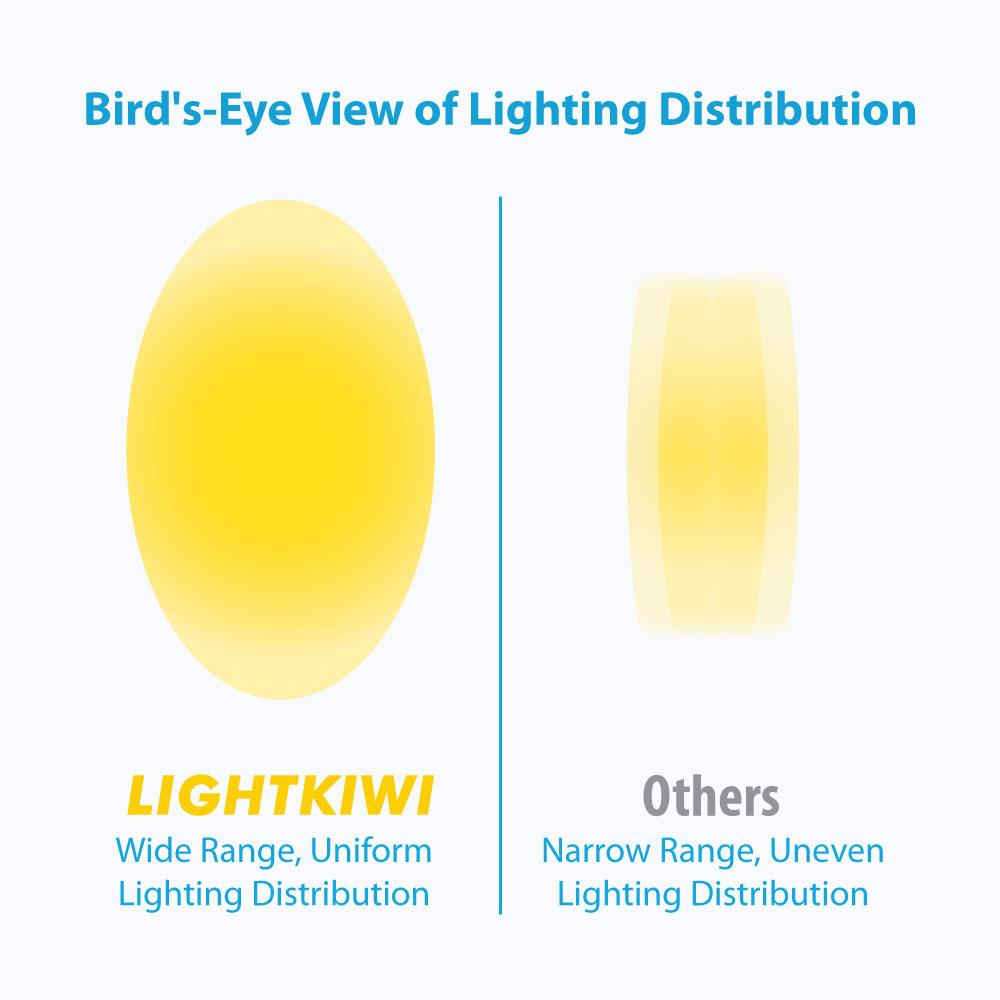

- The light distributes in 120 Degree Beam Angle to optimize and maximize lighting under the cabinet.
- Easily Control the Brightness to the desired level using the inline dimmer switch.
- To ensure maximum safety, Modular LED Light Panel and Power Supply have been Certified by UL.

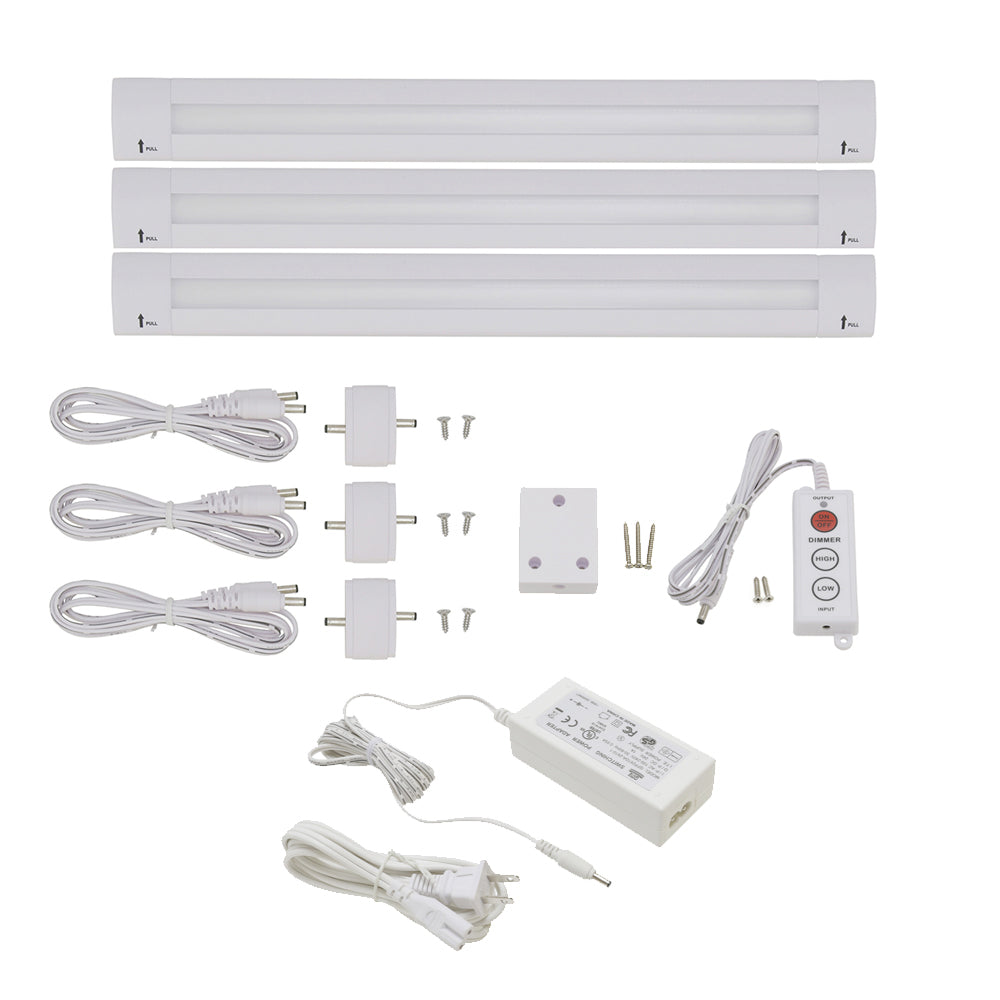

What's Included
- 3 x Lilium 12 Inch Warm White Modular LED Under Cabinet Lighting Panel
- 1 x 24 Watt Power Supply (White) - Link Up to (4) Lilium 12 inch LED Panel
- 1 x Dimmer Switch (White)
- 1 x 4 Way Splitter (White)

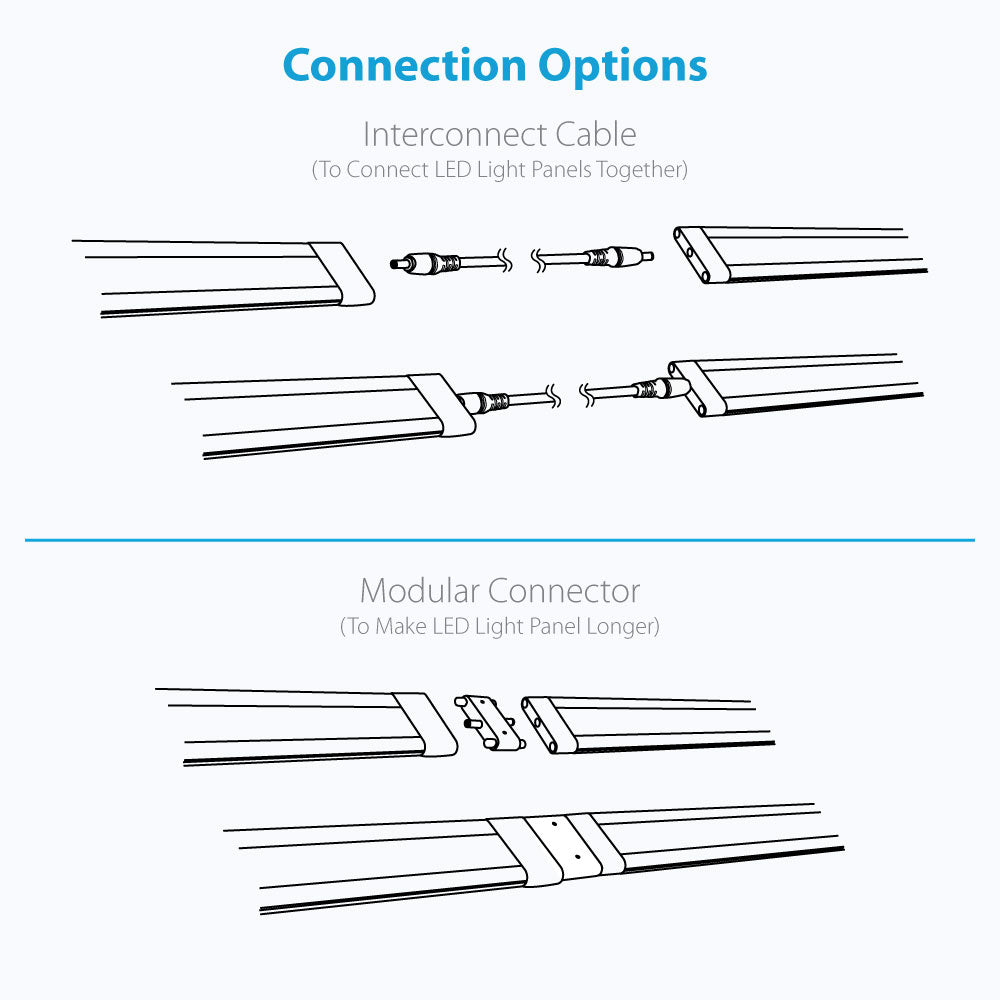

- 3 x 3ft Interconnect Cable
- 3 x Modular Connector
- 6 x Mounting Screw
If you want a different dimmer type, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.
- Dimmer Switch for Modular LED Under Cabinet Lighting (White) – Model: F3632
- Rotary Dimmer Switch for Modular LED Under Cabinet Lighting (White) – Model: W6808
- Wireless Dimmer Switch (Dial Remote Control + Receiver) for Modular LED Under Cabinet Lighting – Model: J4070

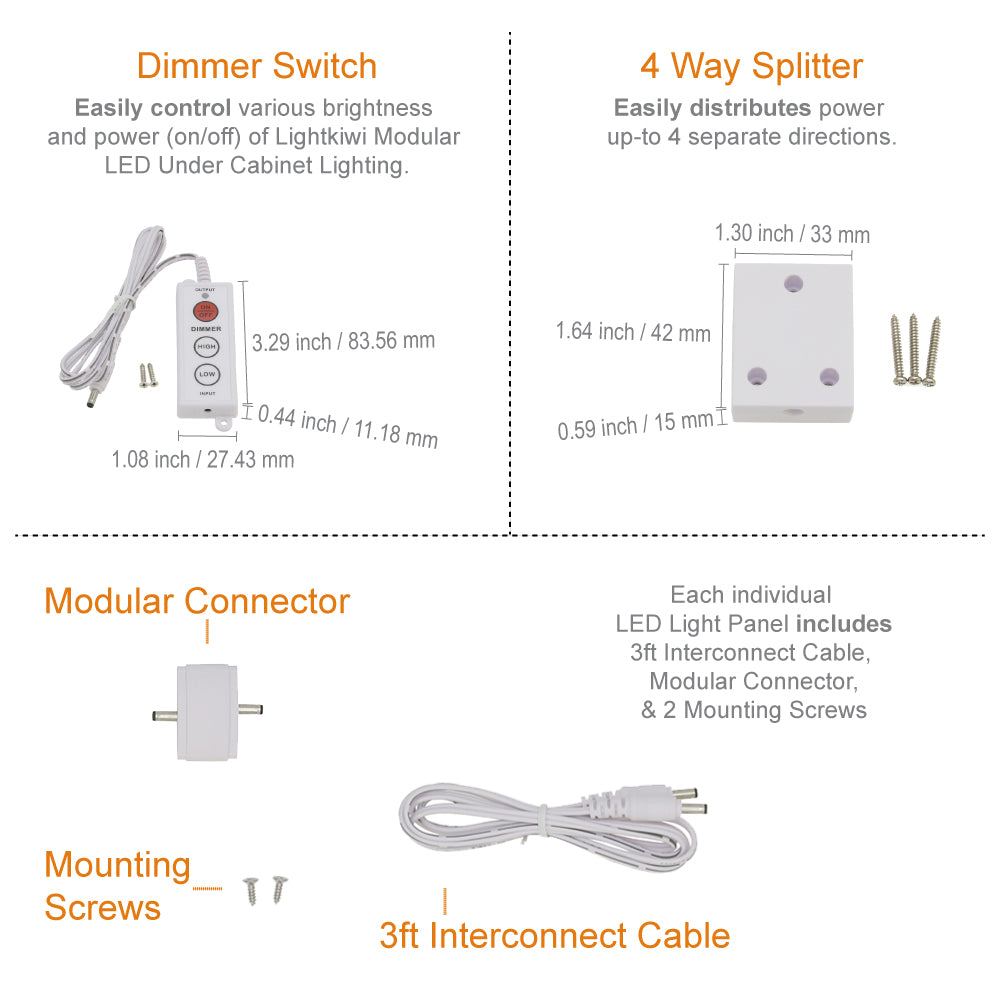

[Dimension]
Lilium 12 Inch LED Light Panel
11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)
24 Watt Power Supply
3.82 x 1.77 x 1.14 inch (97 x 45 x 29 mm)
Dimmer Switch
3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)
4-Way Splitter
1.64 x 1.30 x 0.59 Inch. (42 x 33 x 15 mm)
Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)
Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.
If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.
Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ. Please use matched wattage of power supplies for the best result.
| Electrical | |
| Wattage | 15 Watt |
| Voltage | 24 Volt |
| Photometrics | |
| Lumens | 1200 |
| Life Hours | 40,000 |
| Color | Warm White |
| Bulb Shape | LED Panel |
| Dimmable | Dimmable |
| Color Temperature | 3000 Kelvin |
| Beam Angle | 120 Degree |
| LED Chipset Array | 49 LED |
| Dimensions | |
| Length | 11.75 inch. |
| Diameter | 1.32 inch. |
| Thickness | 0.38 inch. |
| Certifications | |
| Certification | UL Listed / CE / RoHS |
| Materials | |
| Lighting Type | 12" Panel |
| Other Specifications | |
| Number of Lighting | 3 |
Customer Reviews
These were super easy to install and the Illium design allowed me to slant them toward the wall which gives a great backlight and keeps the glare off the eyes and my work. I installed it over a counter we use as a workspace for the family computer. The kit comes with very flexible options for how you fit it to your workspace.

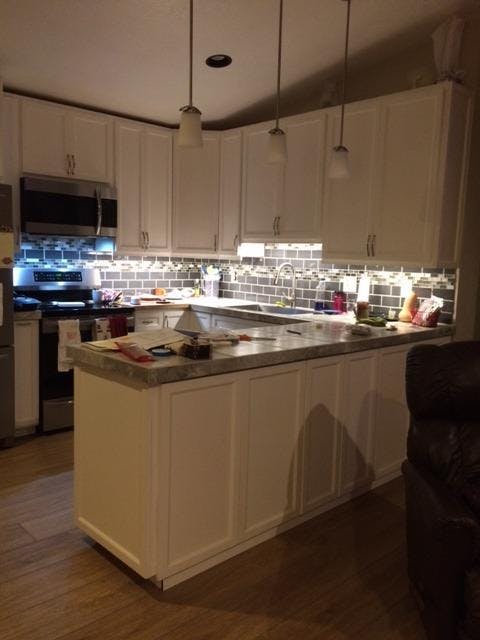

This is the 3 set of warm white we've bought and installed in our house. One is older and now lights a closet that had been forever dark. The other 2 sets this one and one of the 12, 6inch bars kits went under our new cabinets and light our counter tops wonderfully. These give a very pleasant light, not the cold harsh light typical of many LED bars. These last 2 kits we bought the light bars are more refined, very sleek looking all white while our older set was a bit more industrial looking with the LED's showing - but works well going on 4 years now of steady use . Installation is easy. I just used the provided double stick foam tape. I love they include connectors, screws if needed, a splitter and the switch, power supply.. I think I had this 3 bar set installed in 30 minutes. One thing I wish -the connector wires supplied are 12 inch. In some cases a 3 inch or 6 inch option would be nice. I think I ordered some short cables direct from the maker but it would be nice to have the option through Amazon. Finally we aren't always working in our own shadows. [EDIT 6-3-20 well after several months the double stick tape didn't hold one set of 3 bars linked together. So I used screws and the hinged tabs provided. Those hinged tabs can be really stiff to open and I feared breaking a couple. But careful patient prying finally opened them -the hinges were very tight. Still giving good light and I could never go without them now.]
This product provides quite a lot of light. It was not hard to install. It does require a small piece of white conduit though if you do not want to have to see and have wires all over the place. It is not absolutely necessary, but it neatens it up.
This product is reasonably meeting our needs due to being small/thin profile and modular (ability to add units as per your needs). However, it has a rather poor connecting features, which cause the connector and the control units wiring to be very visible. It would have been much better if the connector would plug to the unit from 'above' instead from the side,
Easy installation... Nice bright under cabinet lighting....
