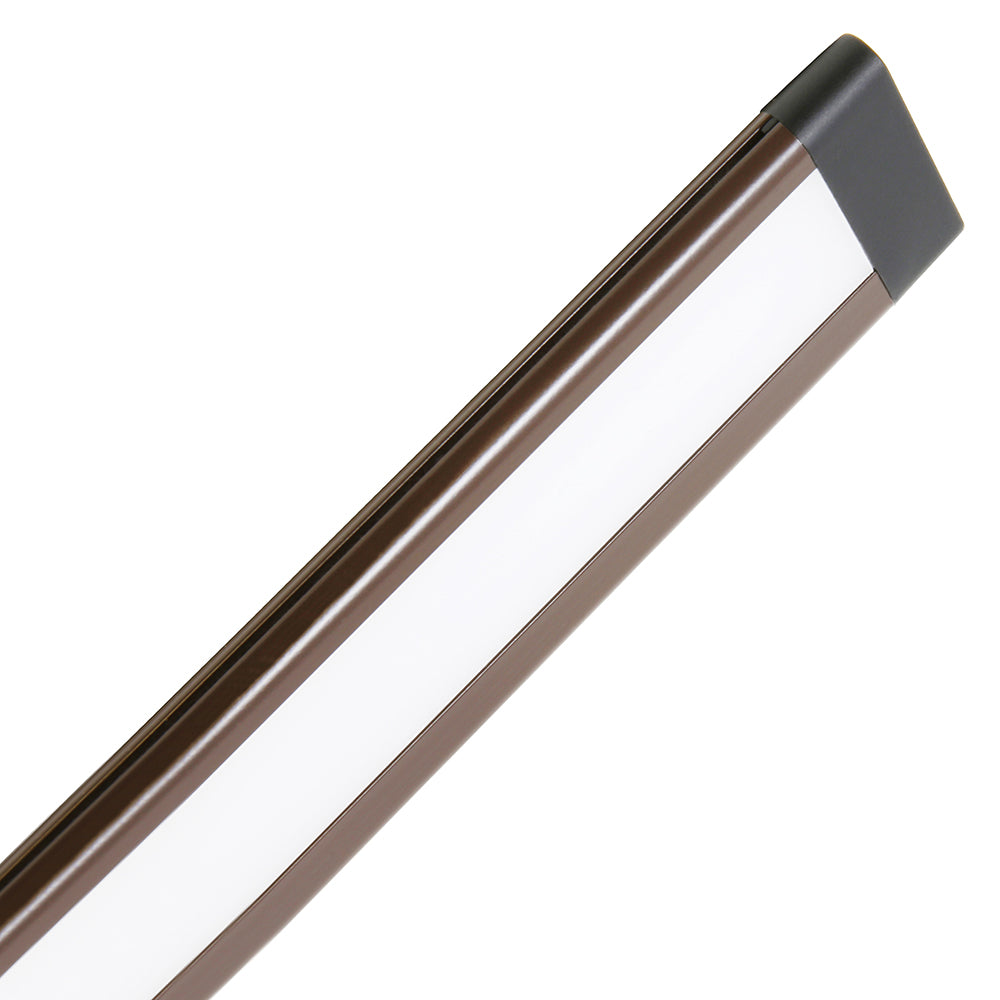

Dunn 8 Inch Cool White Modular LED Under Cabinet Lighting Panel
Quantity:
POWER SUPPLY NOT INCLUDED
- Only 0.30 inch / 7.62 mm thick (60 percent thinner than the standard under cabinet lighting*).
- Sturdy aluminum body. One of the best in the market for its exceptional durability.
- Simple plug-in installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
- Bright 245 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
- Each individual has a bright 35 LED (SMD 3014).
- It only consumes a 3.5-watt maximum. Saves at least 80 percent on energy.
- 24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.
- The light distributes in a 180-degree beam angle to optimize & maximize lighting under the cabinet.
- Easily control the brightness to the desired level using the inline dimmer switch.
- To ensure & maximize the safety, Modular LED Light Panel has been certified by UL.
Important: Please ensure the wattage of the combined units does not exceed the maximum wattage of the power supply used.

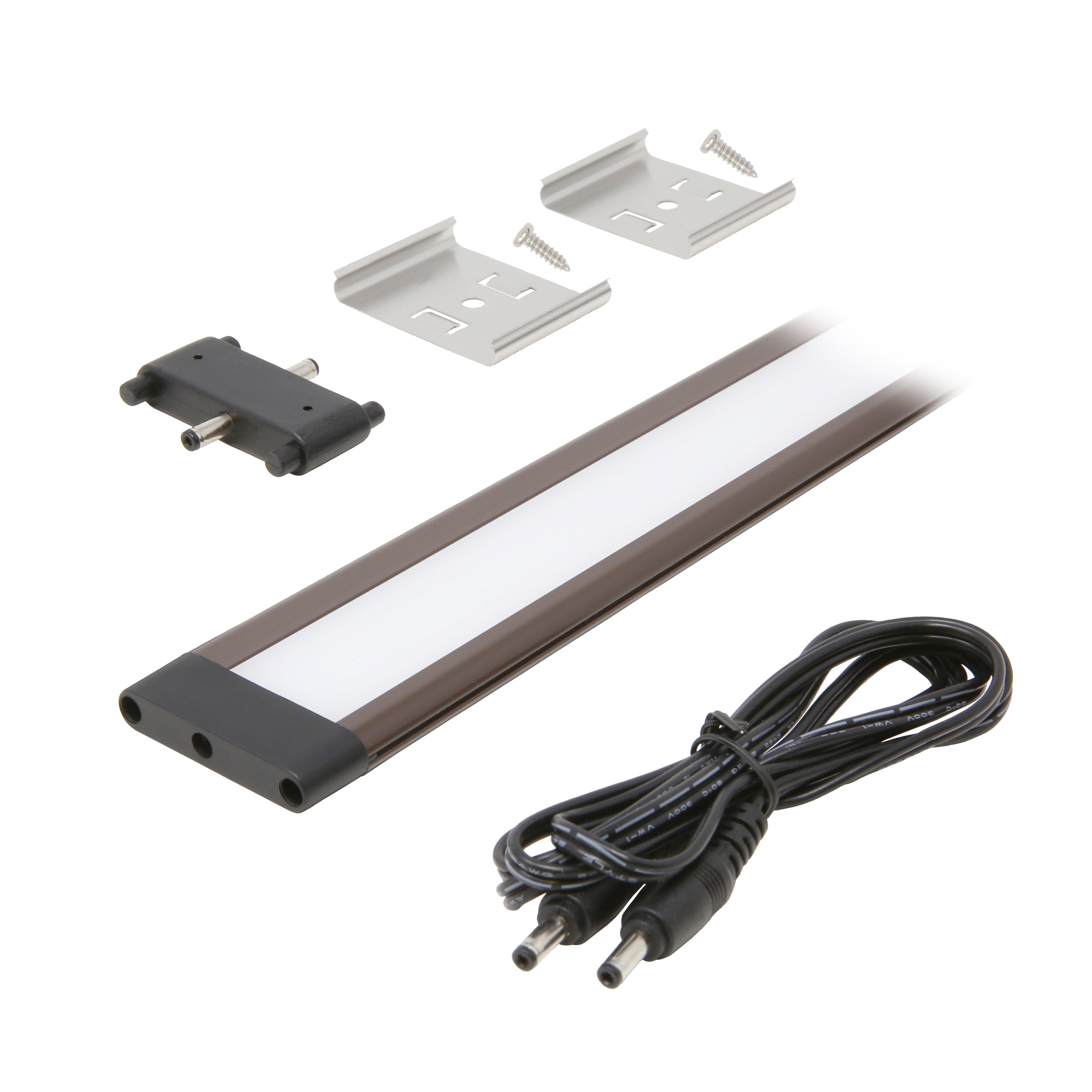

What's Included
- Dunn 8 inch Cool White (6000K) Modular LED Under Cabinet Light Panel
- 3ft Interconnect Cable
- Modular Connector
- 2 x Mounting Bracket w/ Screw
[Dimension]
Dunn 8 inch LED Light Panel
8.03 x 1.48 x 0.30 Inch. (204 x 37.6 x 7.62 mm)
Modular Connector
0.57 x 1.48 x 0.30 Inch (14.45 x 37.6 x 7.62 mm)
Electrical | |
Wattage | 3.5 Watt |
Voltage | 24 Volt |
Photometrics | |
Lumens | 245 |
Life Hours | 40,000 |
Color | Cool White |
Bulb Shape | LED Panel |
Color Temperature | 6000 Kelvin |
Beam Angle | 180 Degree |
LED Chipset Array | 35 LED |
Dimensions | |
Length | 8.03 inch. |
Diameter | 1.48 inch. |
Thickness | 0.30 inch. |
Certifications | |
Certification | UL Listed / CE / RoHS |
Materials | |
Lighting Type | 8" Panel |
Other Specifications | |
Wattage Equivalent | 25 Watt |
