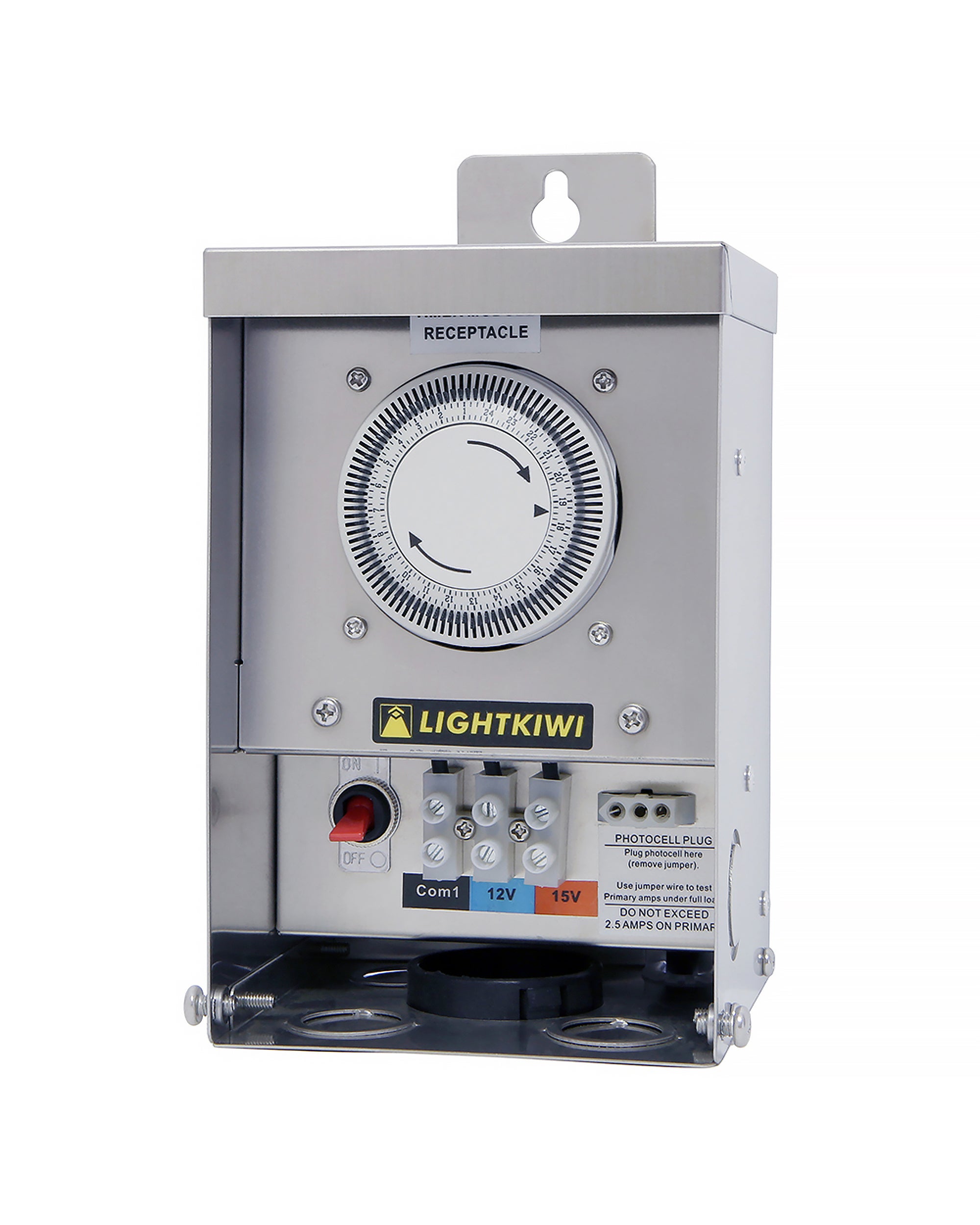

75 Watt Heavy-Duty Stainless Steel (12V-15V) Multi-Tap Low Voltage Transformer for Landscape Lighting

Model : U2184

$82.99

Photocell (Optional)






Availability: In Stock

Quick Overview

  • Multi-Tap Output Voltage: 12V-15V AC
  • Heavy Duty Stainless Steel
  • Built-in Mechanical Timer / Photocell (Not Included) Port Available
  • High Performance Toroidal Core / Dual Protection
  • ETL Listed

Frequently Bought Together

Screw Lock Waterproof Wire Connector for Low Voltage Landscape Lighting - 12 Pack <Discontinued> (#26 - #12 AWG)
Waterproof Wire Connector

$13.99

Photocell for Low Voltage Landscape Lighting Transformer Turn your lights on at dusk and off at dawn.
Photocell

$15.99

14AWG 2-Conductor Direct Burial Wire for Low Voltage Landscape Lighting, 100ft Perfect for wiring the lighting
14AWG Direct Burial Wire

$35.99

Waterproof Wire Connector (#22 - #12 AWG) for Low Voltage Landscape Lighting - 20 Pack (#22 - #12 AWG)
Waterproof Wire Connector

$19.99

​

75 Watt Heavy-Duty Stainless Steel Low Voltage Transformer for low voltage outdoor lighting, landscape lighting, lawn lighting and garden lighting.

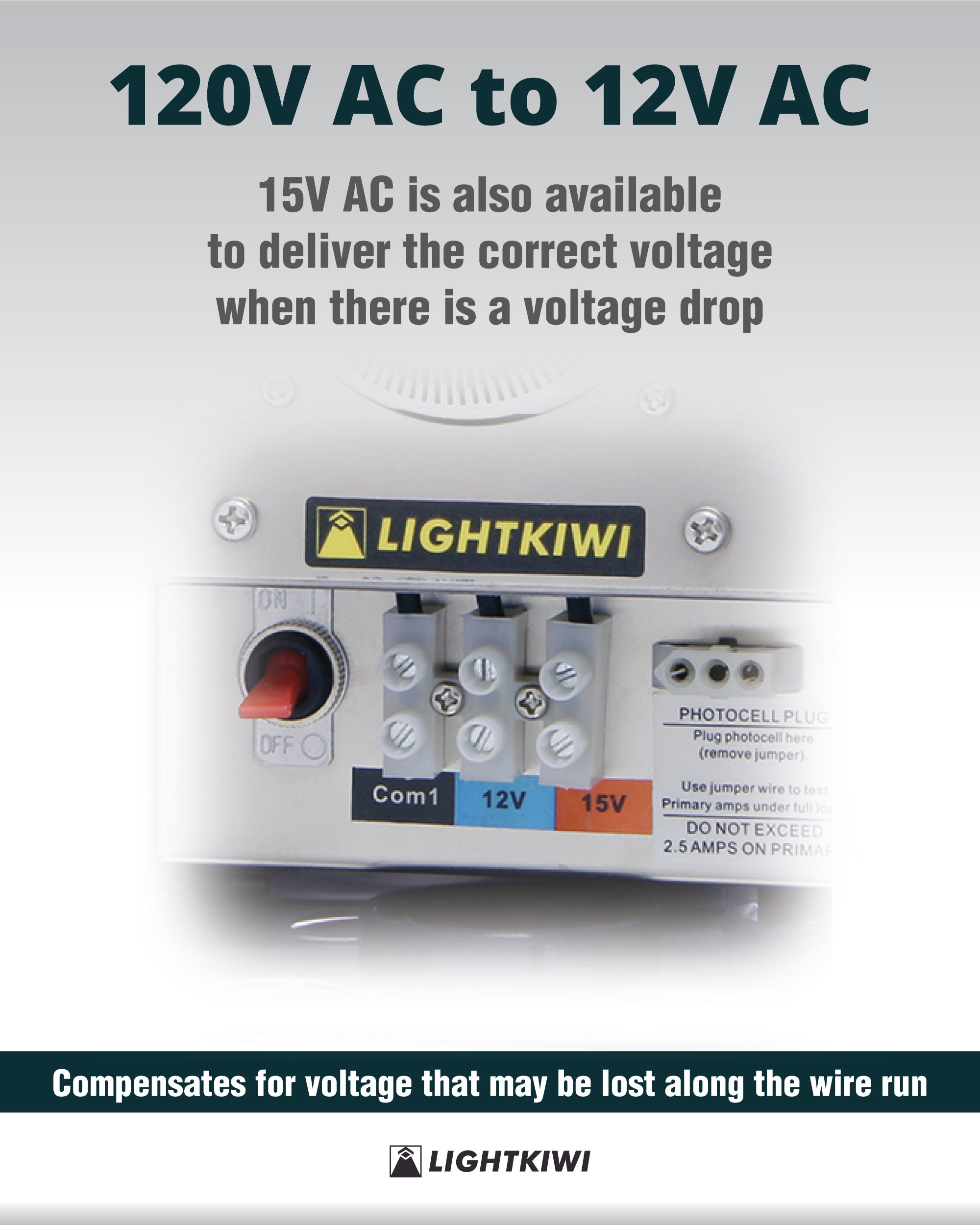

  • Multi-Tap Output Voltage for Longer Wire Run
    • Input: 120V AC
    • Output: 12V-15V AC
  • Maximum Load: 70%
  • Heavy Duty Stainless Steel

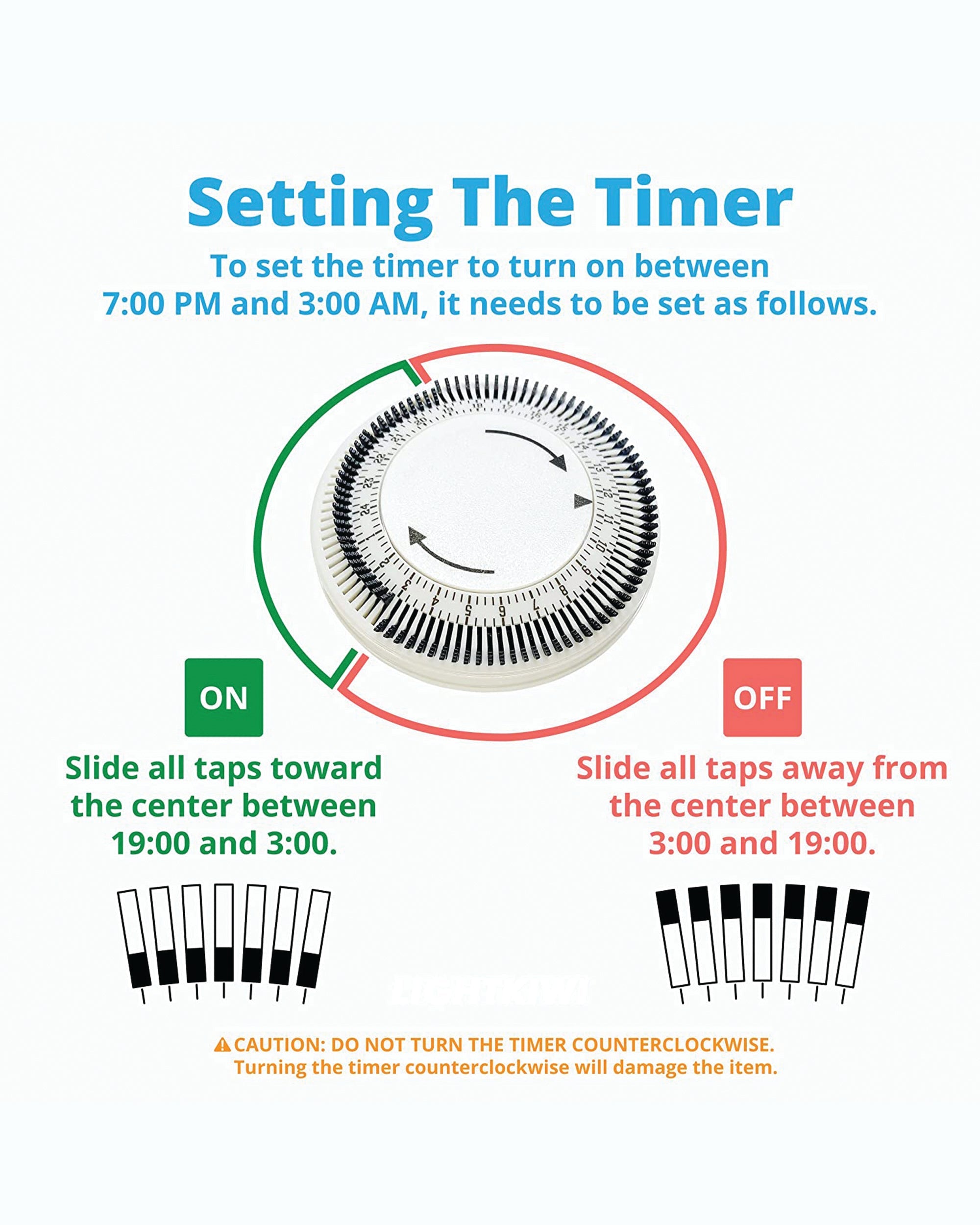

  • Built-in Mechanical Timer
  • Photocell (Not Included) Port Available - Allow to add a photocell anytime.
  • Suitable for Indoor and Outdoor use.
  • High-Performance Toroidal Core
    • Quiet Operation, Great Reliability, and High Efficiency.
  • Dual Protection
    • Primary: Auto Reset Thermal Circuit Breaker
    • Secondary: 7A Magnetic Circuit Breaker
  • Power Cord: 70” black 18AWG SJTW cord and plug set
  • ETL Listed

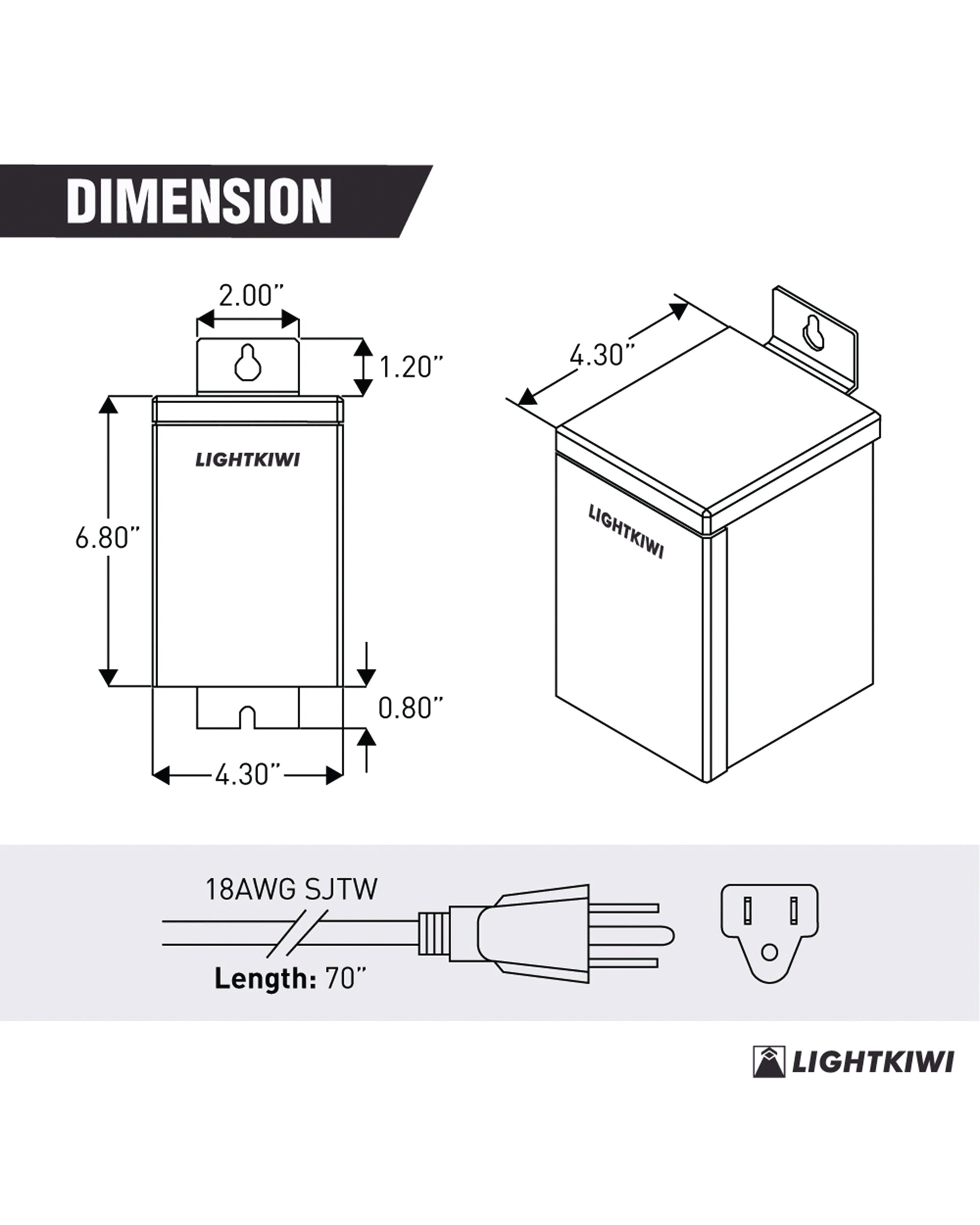

  • Product Dimension:
    • Length: 4.3 inch
    • Width: 4.3 inch
    • Height: 6.8 inch


Maximum Number of Wire per Tab (Com1, 12V, 15V)

Wire Gauge Wire Diameter Number of Wire
10 AWG 4.6 mm 1 pc
12 AWG 4.0 mm 1 pc
14 AWG 3.5 mm 1 pc
16 AWG 3.1 mm 1 pc
18 AWG 2.8 mm 1 pc
Electrical
Input Voltage Range 120V AC
Output Voltage 12V-15V
Capacity 75 Watt
Com Port 1
Dimensions
Weight 8lbs
Certifications
Certification ETL Listed
Materials
Finish Stainless Steel
Power Cord 70" Black 18AWG SJTW Cord and Plug Set
Other Specifications
Short Circuit Protection Primary: Auto Reset Thermal Circuit Breaker
Secondary: 25A Magnetic Circuit Breaker
Built-In Timer Mechanical Timer

0

Product Comparison

Product Image
Model U2184 W9715 U8810 C6449
Finish Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Input Voltage Range 120V AC 120V AC 120V AC 120V AC
Output Voltage 12V-15V 12V-13V-14V-15V AC 12V-13V-14V-15V AC 12V-13V-14V-15V AC
Short Circuit Protection Primary: Auto Reset Thermal Circuit Breaker
Secondary: 25A Magnetic Circuit Breaker		 Primary: Auto Reset Thermal Circuit Breaker
Secondary: 25A Magnetic Circuit Breaker		 Primary: Auto Reset Thermal Circuit Breaker
Secondary: 25A Magnetic Circuit Breaker		 Primary: Auto Reset Thermal Circuit Breaker
Secondary: 25A Magnetic Circuit Breaker
Power Cord 70" Black 18AWG SJTW Cord and Plug Set 70" Black 18AWG SJTW Cord and Plug Set 70" Black 18AWG SJTW Cord and Plug Set 70" Black 18AWG SJTW Cord and Plug Set
Capacity 75 Watt 300 Watt 600 Watt 150 Watt
Com Port 1 1 2 1
Weight 8lbs 18lbs 27lbs 16lbs
Built-In Timer Mechanical Timer None None None
Certification ETL Listed ETL Listed ETL Listed ETL Listed
Price $82.99 $164.99 $269.99 $139.99
