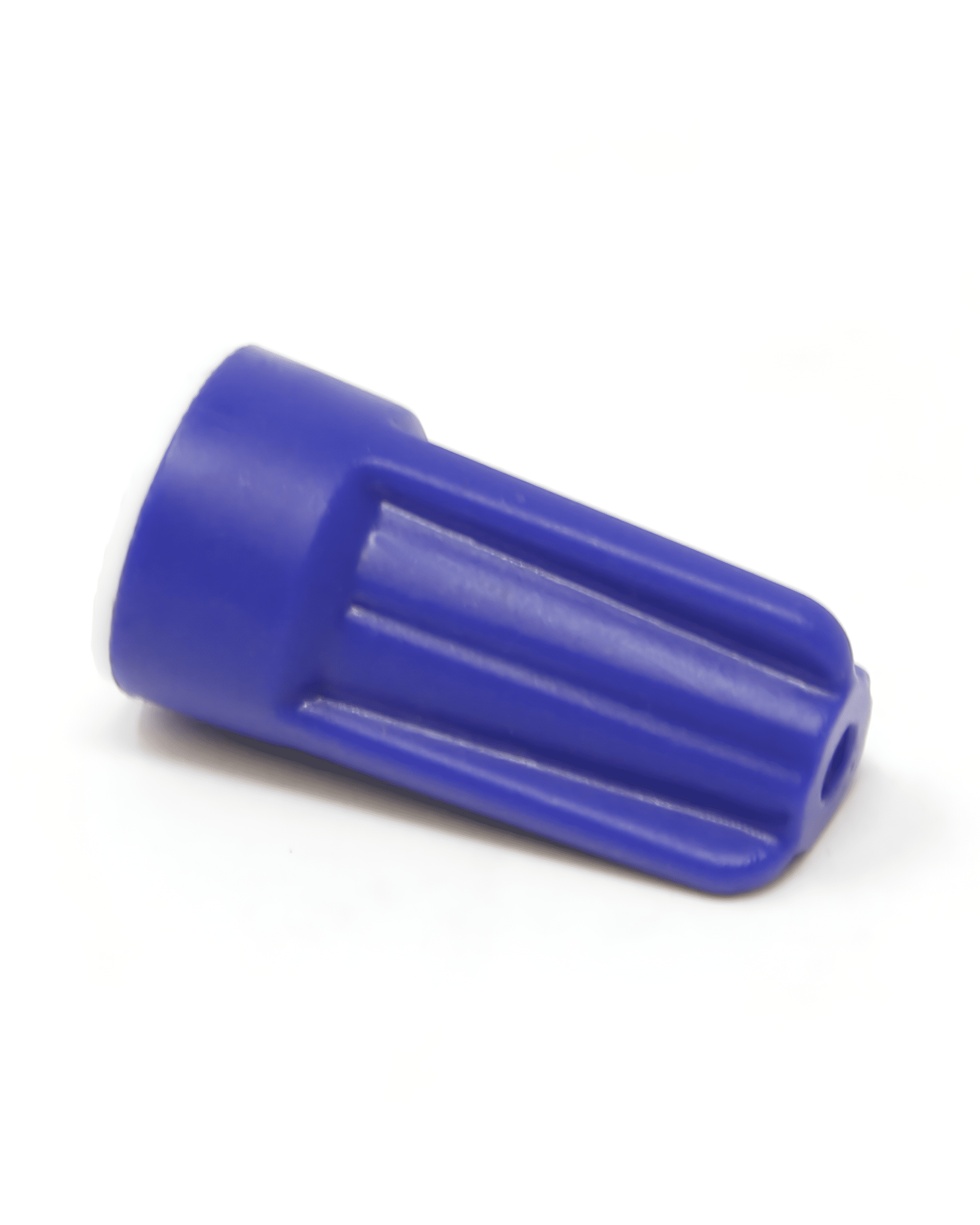

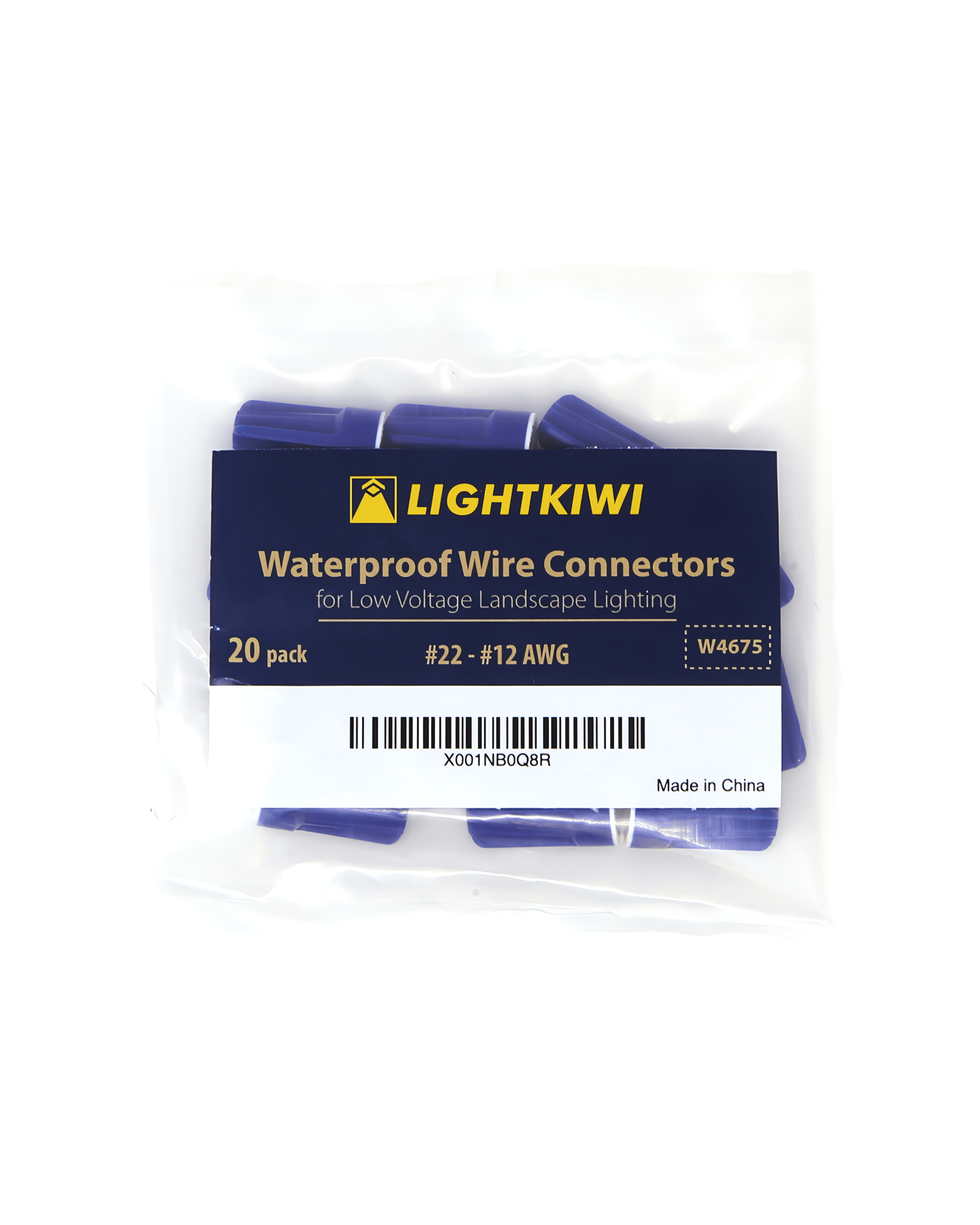

Waterproof Wire Connector (#22 - #12 AWG) for Low Voltage Landscape Lighting - 20 Pack
Quantity:

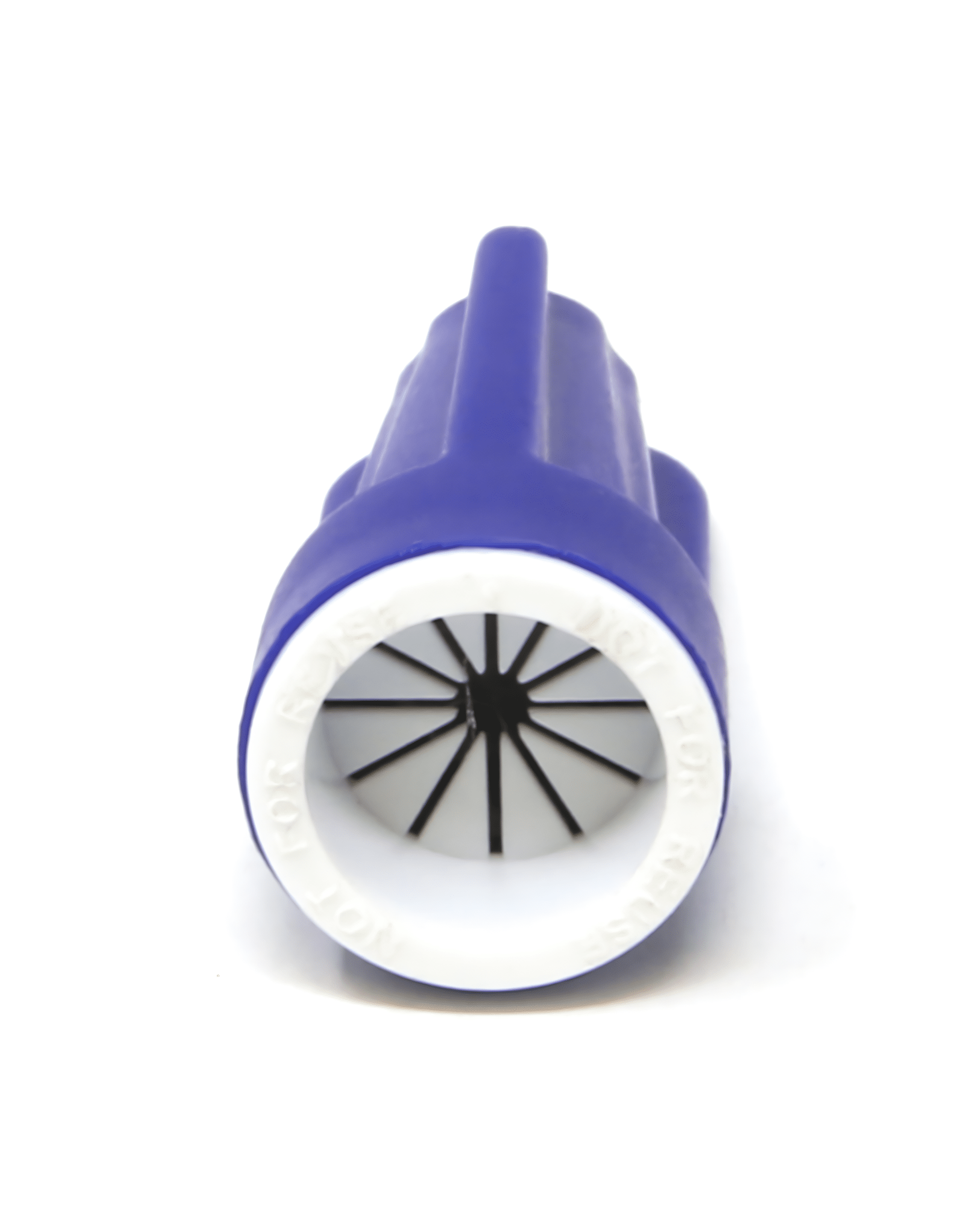

Easy to install and suitable to use in a wide variety of direct burial and wet location electrical connections. Pre-filled with special insulation sealing grease for waterproof, moisture-proof, and anti-corrosion.
- Max. Voltage: 600V
- Wire Range: Min #22/Max #12
- Max Temp Rating: 105 Degree C (221 Degree F)
- Silicone Sealant: -45 Degree F to 400 Degree F
|
|
||
|---|---|---|
| 1, 2, 3, or 4 #14 | 1 #10 | 1 #16 w/ 2, 3, or 4 #22 |
| 2, 3, 4, or 5 #18 | 1 #10 w/ 2 #14 w/ w 1 #16 | 2 #18 w/ 3 #20 |
| 2 #18 w/ 3 #22 | ||
How to Read Wire Combinations
- Example: 1 #14 w/ 1, 2, or 3 #18 or #20
- Red Text = Number of Wires
- Blue Text = Wire Size (AWG)
- This example can be used to use one of the following combinations
- one (1) 14 AWG wire with one (1) 18 AWG wire
- one (1) 14 AWG wire with two (2) 18 AWG wires
- one (1) 14 AWG wire with three (3) 18 AWG wires
- one (1) 14 AWG wire with one (1) 20 AWG wire
- one (1) 14 AWG wire with two (2) 20 AWG wires
- one (1) 14 AWG wire with three (3) 20 AWG wires
